TW01

4G Asset Tracker
TW01 front view
TW01 front view

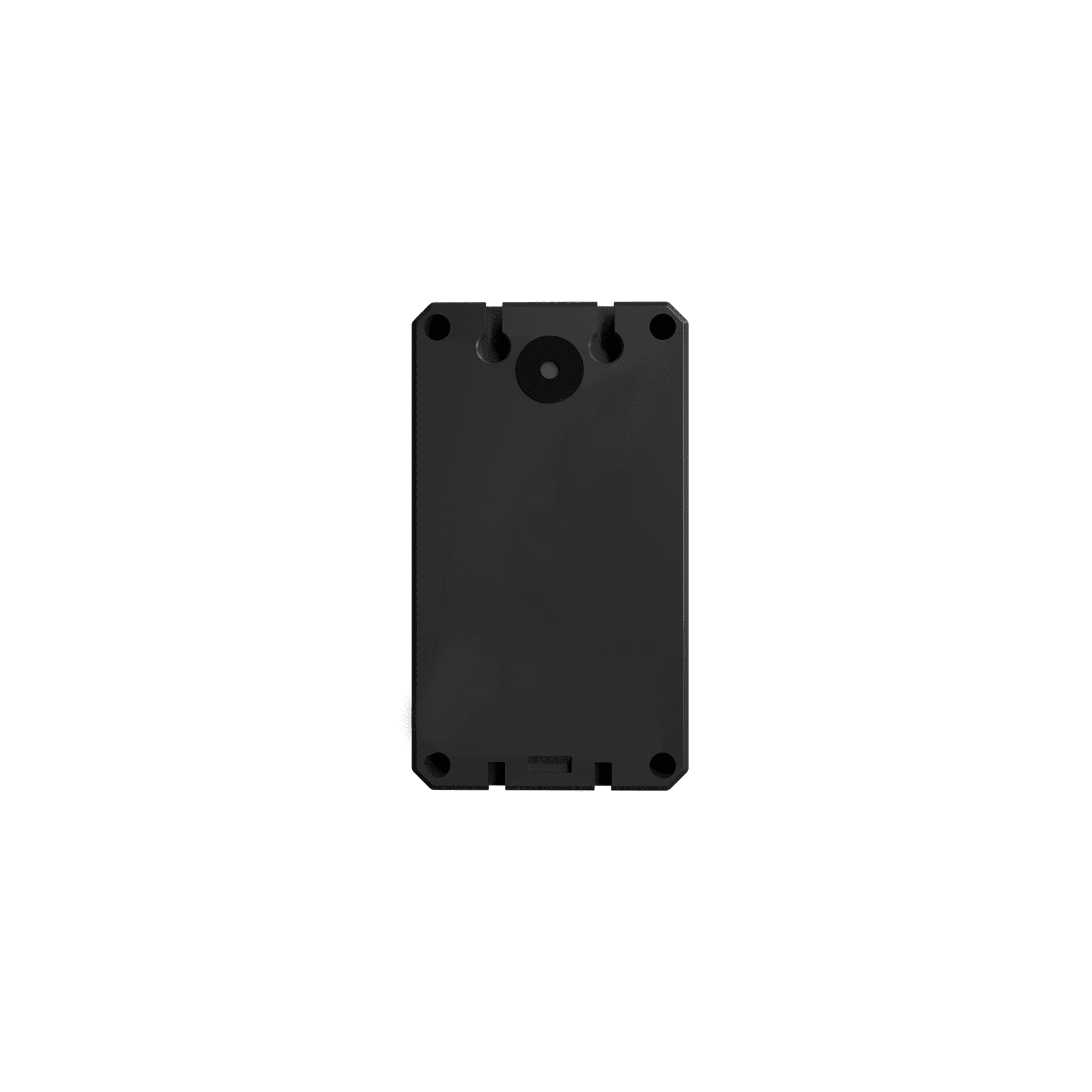

TW01 back view

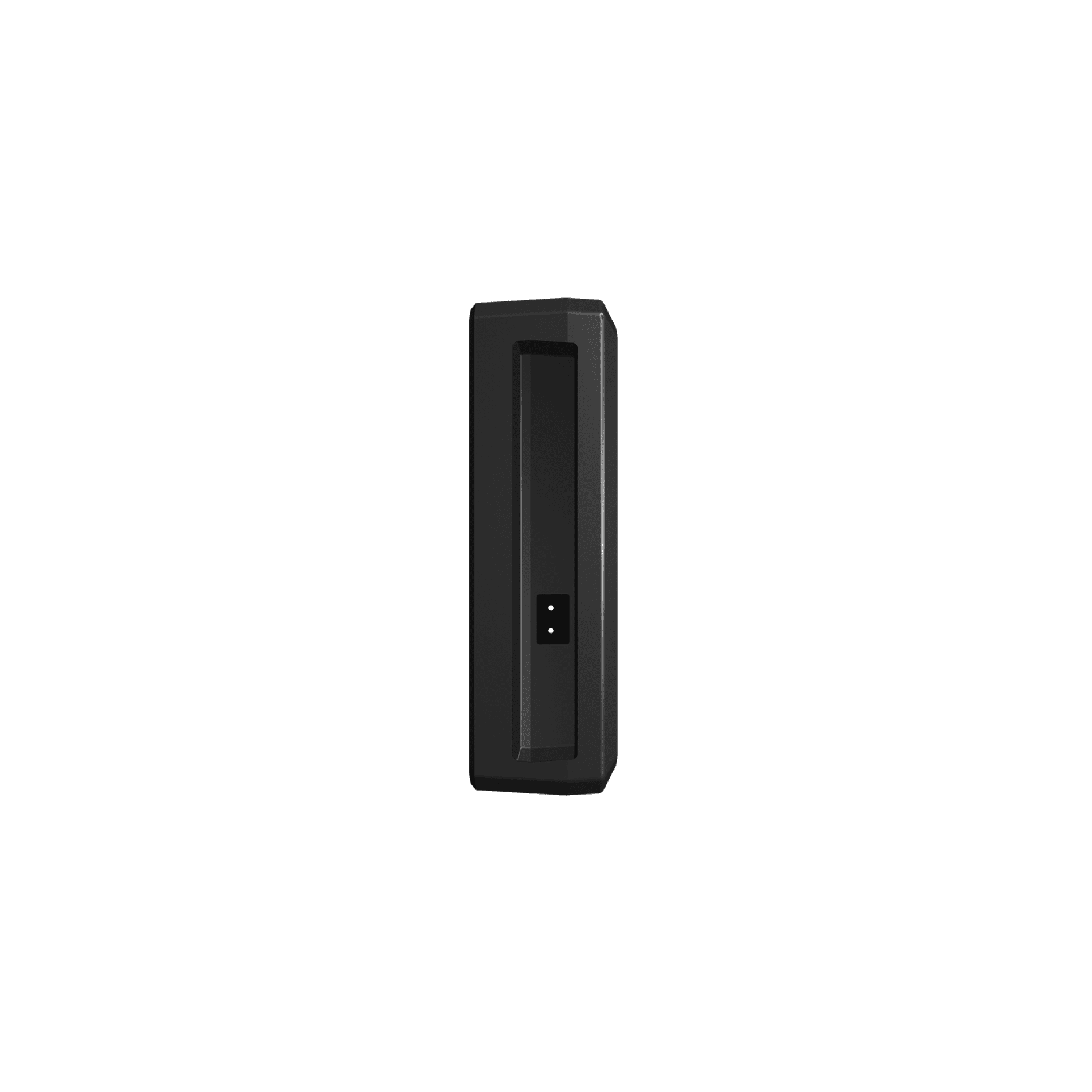

TW01 side view

TW01 is a wireless tracker powered by inbuilt battery. It aims to provide tracking solutions for asset management. As it is so designed with the compact size and the back magnetic component, it allows a quick, silent and sightless installation in seconds to metal items. It produces precise location information based on disciplines set to follow. It can be your count-on as you want it to act while it lurks in silence most of the time.

icon png img

Low Power Consumption

Mainly the power consumption in lurks so to enable longer time for the overall use per battery-charged.

icon png img

4G LTE CAT-M1 Connectivity

Designed for IoT connectivity in North America.

icon png img

2G Network Fallback

In case 4G connectivity is not available, it keeps communication continuing.

icon png img

Large-capacity Built-in Battery

The sole power source to keep the device working and as long as possible.

icon png img

Magnetic Adhesion

The way how it could installed silently and quick.

icon png img

Rechargeable And Reusable

Not being a disposable device it can be reused by recharging the battery.

icon png img

Compact Size

One of the right features enable the invisible installation

icon png img

Removal Alert

It happens once a physical move-off takes place to the device from where it had been installed.

icon png img

Waterproofing Casing

Designed in IP67 rating.

Product Details

Unlock More Visually

TRAK-IOT TW01 ASSET TRACKER
4G+2G Connectivity
Accurate positioning
IP67
Two light sensors
Magnetic case
Magnetic case
compact size
geo-fence
magnetic charging cable
built-in battery
Accurate tracking
Application scenarios
TW01 DIMENSIONS
LED patterns
Sim Card
INSTALLATION GUIDE
Previous
Next

CELLULAR NETWORK

Operating Band

Cat M1: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/　B18/B19/B20/B25/B26*/B27/B28/B66/B85

Cat NB2: LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/　B19/B20/B25/B26*/ B28/B66/B71/B85

EGPRS: 850/900/1800/1900MHz



Data Transmission

Cat M1: Max. 588 Kbps(DL) /1119 Kbps/(UL)

Cat NB2: Max. 127 Kbps(DL) /158.5 Kbps (UL)

GPRS: Max. 107 Kbps(DL) /85.6 Kbps(UL)

EDGE: Max. 296 Kbps(DL) /236.8 Kbps(UL)

Cellular Antenna

Internal

POSITIONING

Constellation Support

GPS/GLONASS/BeiDou/Galileo

Channels

72 channels

Sensitivity

-167dBm (Tracking)

-160dBm (Reacquisition)

-148dBm (Cold start)

-157dBm (Hot start)

Location Accuracy

2.5m (CEP)

Standalone TTFF

26S (Cold start)

1S (Hot start)

2S (Aided starts)

GNSS Antenna

Internal

REALIABILITIES

Operating Temperature

-20℃ ～+70℃

Storage Temperature

-40℃ ～+85°C

Battery Storage Temperature

-40℃ ～+85°C

Operating Humidity

5% to 95% non-condensing

PHYSICAL

Dimensions

87*50*25.9mm

87*50*31.5mm (With magnetic case)

Weight

121g

180.6g (With magnetic case)

Ingress Protection Rating

IP67

Charging Method

5V 1A adapter

Internal Battery

Rechargeable 2500mAh 3.7V Li-polymer

Standby Time

1 report per day: 1 year

INTERFACES

Charging and Data Transmission

4-Pin port with magnet

Light Sensor

2 (Front and back)

Accelerometer

1 (3-axis accelerometer)

Status LEDs

2 (STATUS, GPS)

STW01MAG

STW01MAG is structural part specially designed for the wireless tracker D01, that enables the tracker can be quickly and snugly installed onto somewhere of metal part.
