4G 22PIN-TC10

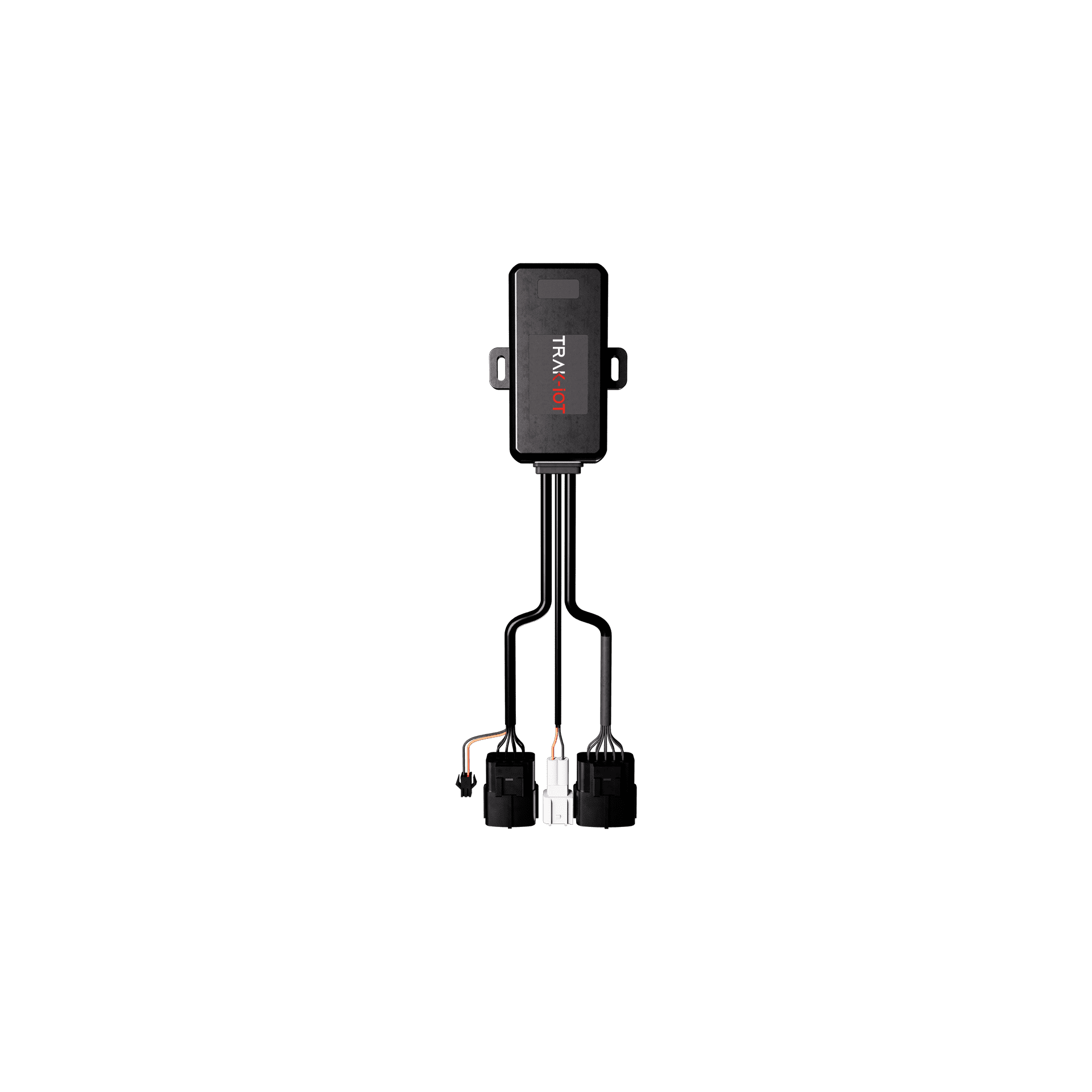

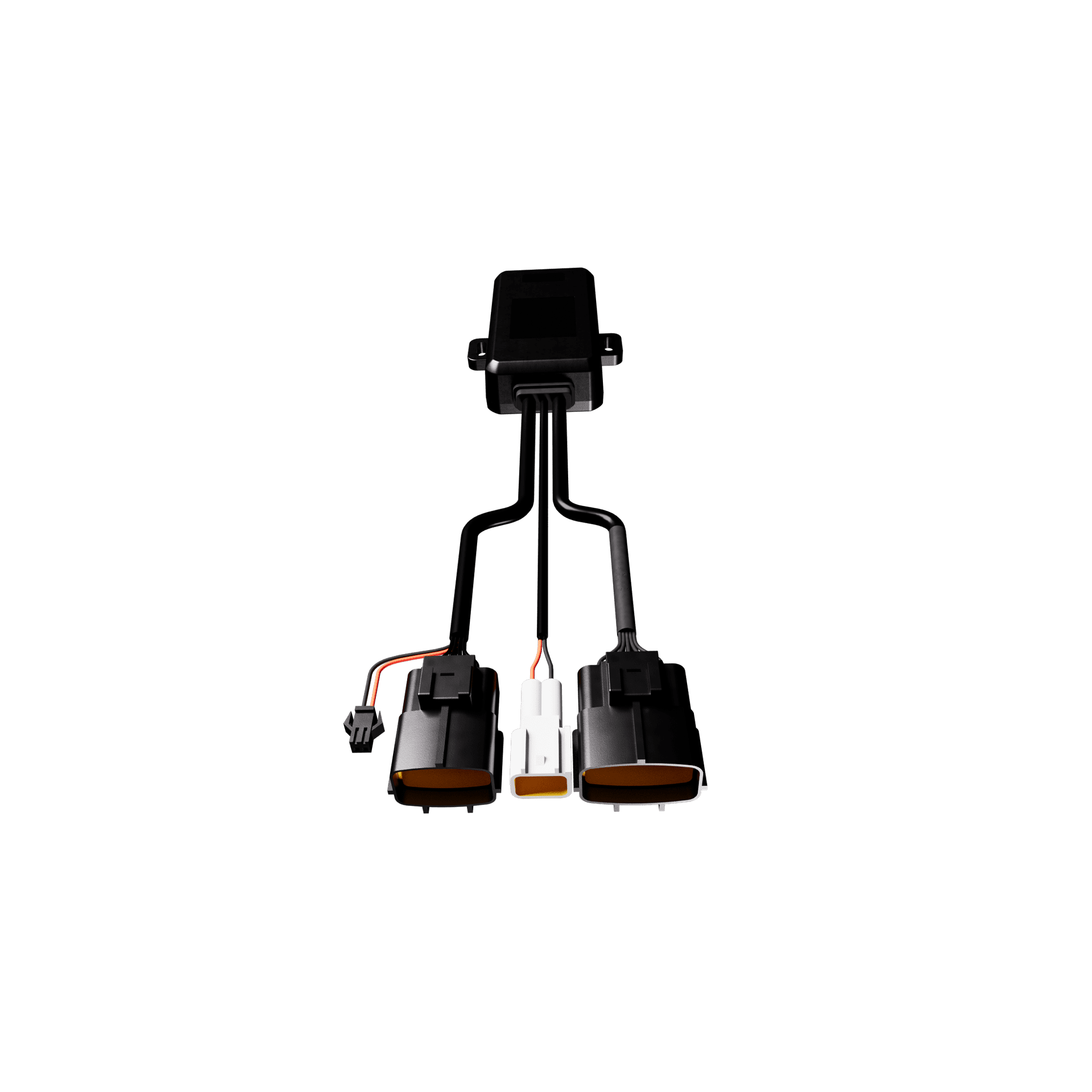

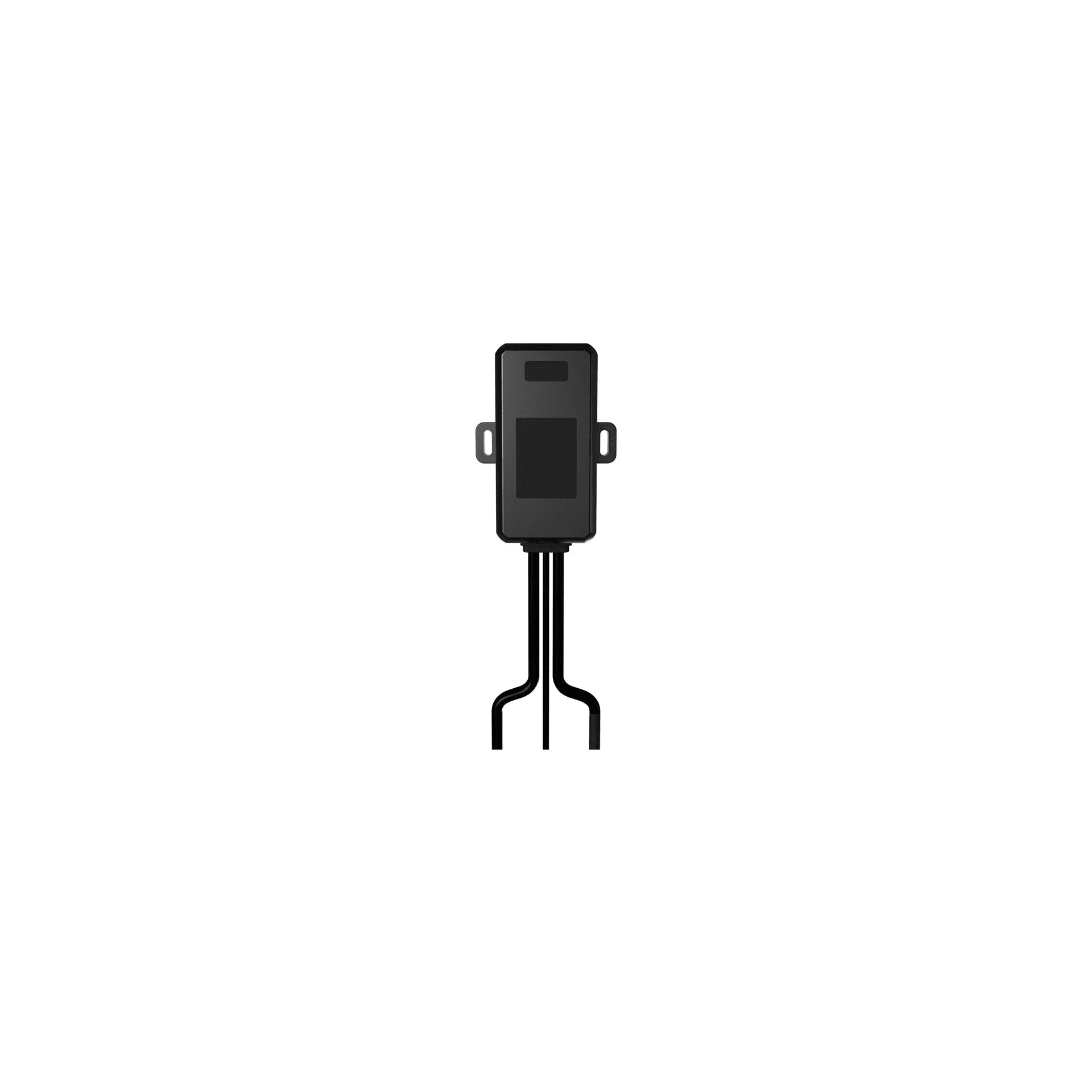

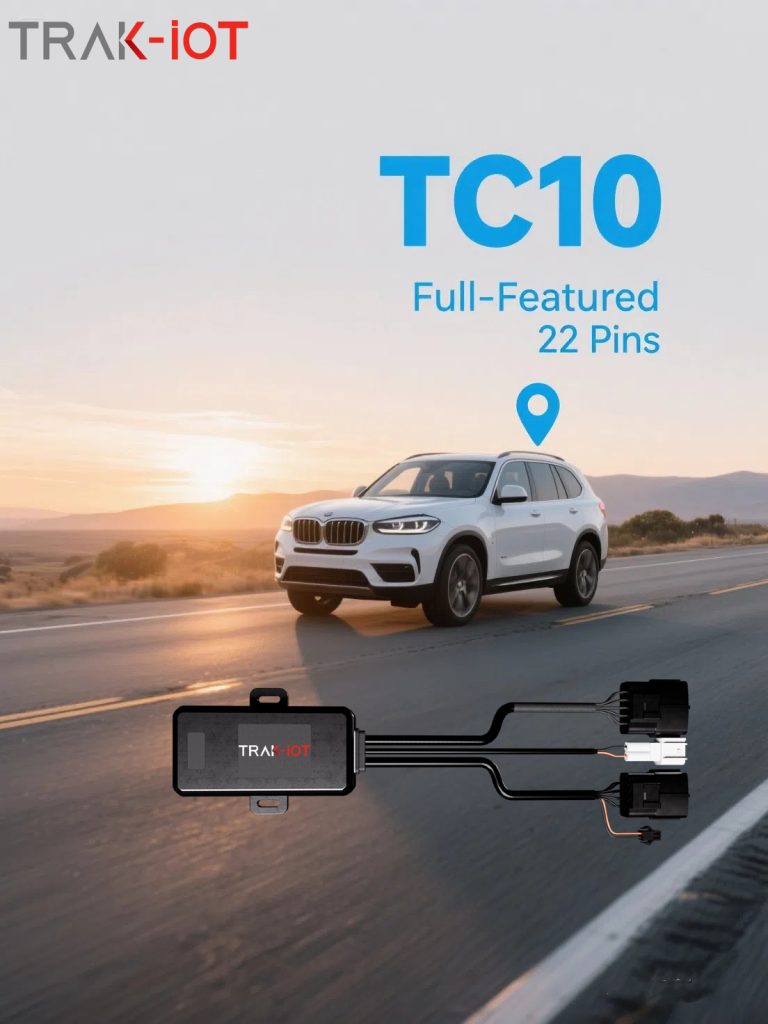

4G Multi-Harness Full-Featured Vehicle Tracker

TC10 is a comprehensive wired positioning terminal that offers a wide range of features. In addition to basic functions like real-time positioning, driving behavior analysis, dismantling alarm, ACC detection, and remote locking, it also provides multiple interfaces for connecting external sensors. And it also supports TTS voice broadcast and Bluetooth module. With its powerful capabilities, TC10 can meet various regulatory requirements and application scenarios.

icon png img

4G LTE Connectivity

Designed for IoT connectivity in Asian, European, and Latin-American countries.

icon png img

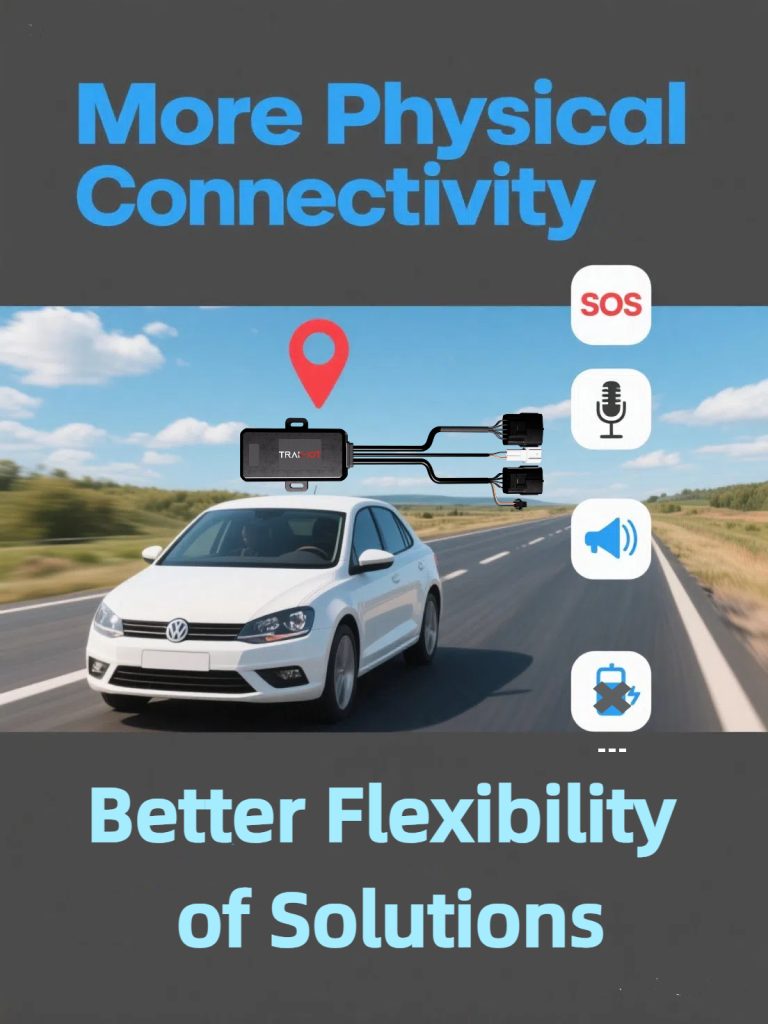

22 Cabling Interfaces

More physical connectivity means better possibilities and flexibility of solutions.

icon png img

485/232/TTL interface

Supports 485/232/TTL one of three options for connectivity of the verified temperature, fuel level or tyre pressure sensors.

icon png img

2G Network Fallback

In case 4G connectivity is not available, it keeps communication continuing.

icon png img

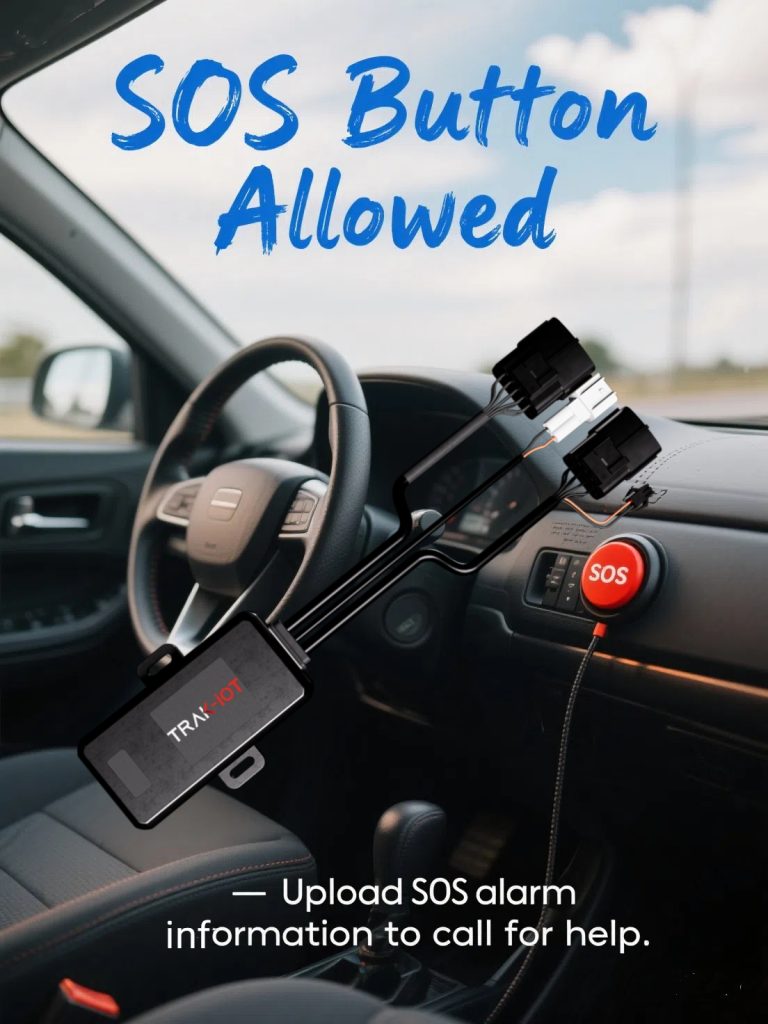

SOS Button Allowed

Allows a quick calling solution in case of emergencies by simply pressing a SOS button.

icon png img

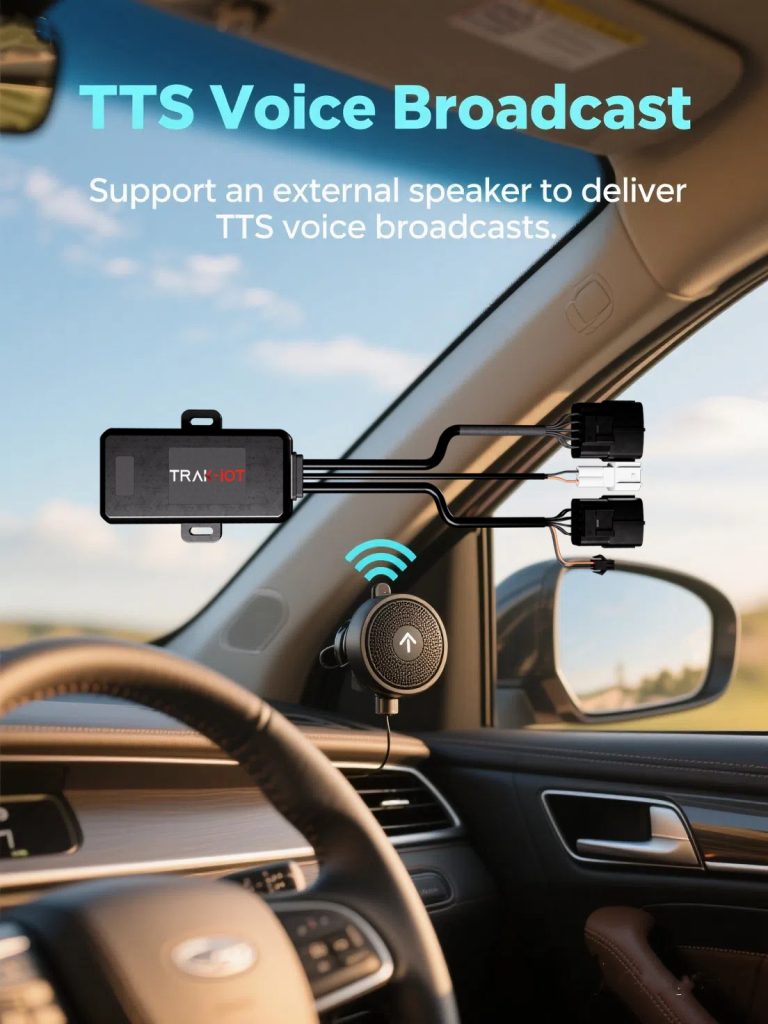

TTS Voice Broadcast

Sppports external interface for TTS voice broadcast.

icon png img

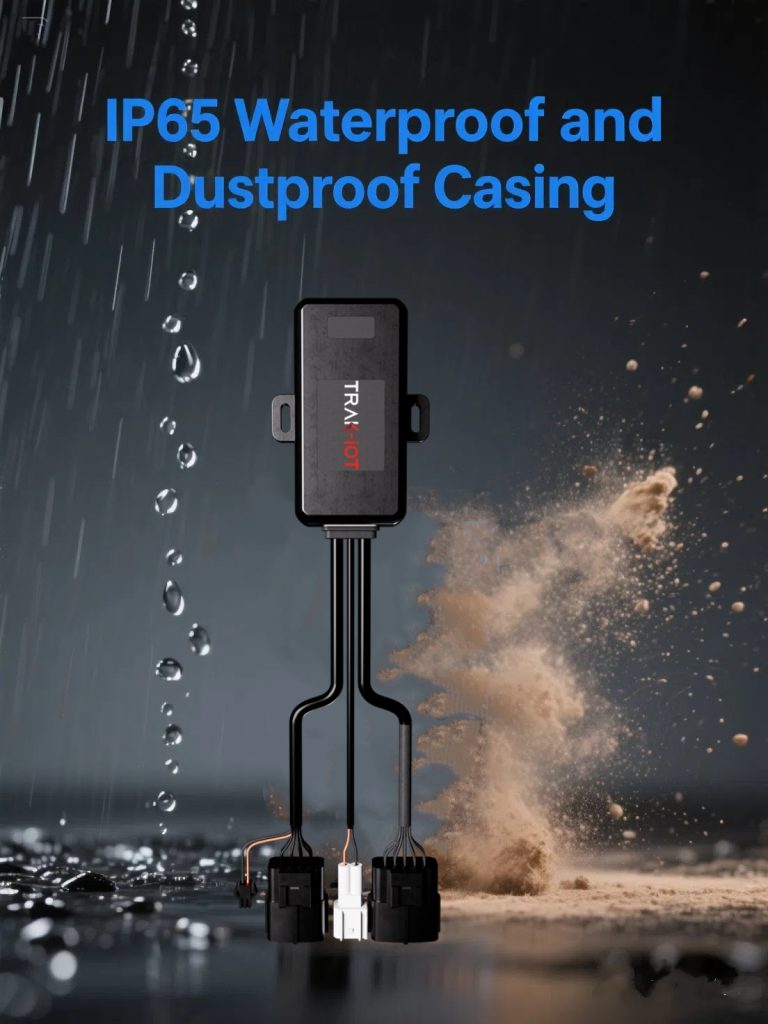

Waterproofing Casing

Designed in IP65 rating.

icon png img

Built-in Battery

Allowing device keeps working once power supply is not available.

icon png img

ACC Detection

Physically detect ignition status, for generate reliable data.

icon png img

Inner Antennas

Both positioning & cellular Antennas are built on board.

icon png img

Real-time Positioning

Employs three satellite system of Beidou (China), GPS(USA) & GNASS (Russia).

icon png img

Built-in Storage

Store data when cellular connection is out.

icon png img

Driving Behavior Detection

Collects data of Driving performances for generate reliable reports of driving behavior analysis.

icon png img

Remote Engine Cut-off

Physically disable the vehicle engine from a distance away without a limitation.

icon png img

Geo-fencing Setting & Alert

Support setting either on the hardware itself or remotely on a software.

icon png img

OTA updates

This is basic way for features update, debug and parameters reset.

CELLULAR NETWORK

Operating Band

TC10-AS:
LTE FDD: Band 1/3/5/8
LTE TDD: Band 34/38/39/40/41
GSM: 900/1800MHz
TC10-EU:
LTE FDD: Band 1/3/5/7/8/20/28
GSM: 850/900/1800MHz/1900
TC10-LA:
LTE FDD: Band 2/3/4/5/7/8/28/66
GSM: 850/900/1800MHz/1900

Cellular Antenna

Internal

POSITIONING

Constellation Support

BDS/GPS/GLONASS

Location Accuracy

Satellite positioning <10m (2DRMS)

GNSS Antenna

Internal

PHYSICAL

Dimensions

102mm*52.5mm*25mm

Operating Voltage

DC9V-36V

Operating Current

< 50mA@12V (standby current < 5mA)

Backup Battery

145mAh

Waterproof and Dustproof Grade

IP65

Supported Sim Card

Built-in Micro SIM

Indicator Lights

Green (CELL)
Blue (GNSS)

INTERFACES

ACC Detection

1

Fuel Cut-off

1

SOS

1

Analog Input

1

485/232/TTL

Optional, 485/232/TTL one of three options for peripherals such as cameras or temperature and humidity sensors.

Digital Input I/O port

3 (For sensors such as door status sensor or air conditioner switch, etc.)

Digital Output I/O port

1 (For buzzer, limit switch, etc)

1-wire

1

Microphone

1

Loudspeaker

1

5V Voltage Output

1 (Supply power to peripherals)

RELIABILITIES

Operating Temperature

–20°C ~ + 70°C

Storage Temperature

–40°C ~ + 85°C
