4G AI Dash-TD02

4G Dash Camera

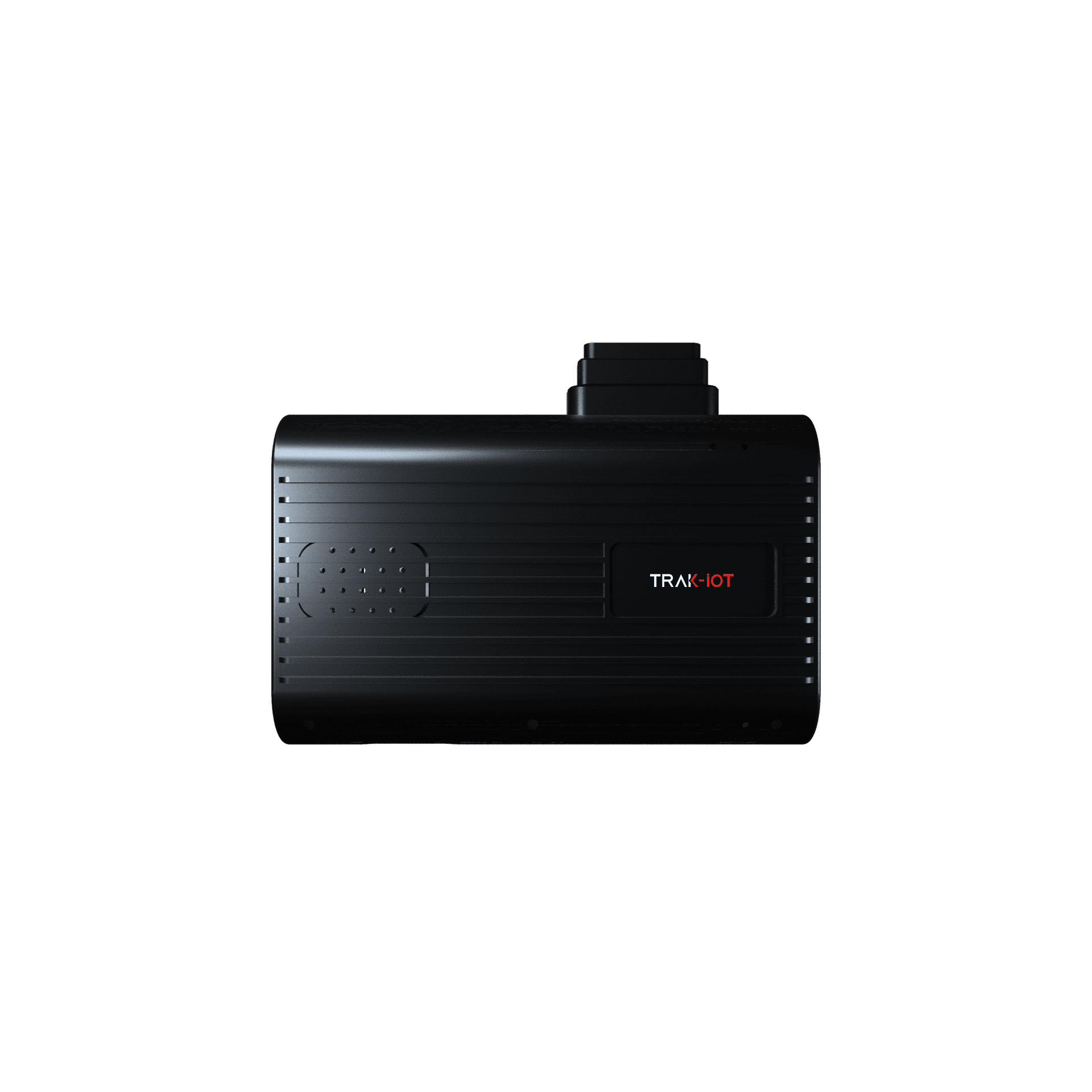

TD02 Dashcam Front View

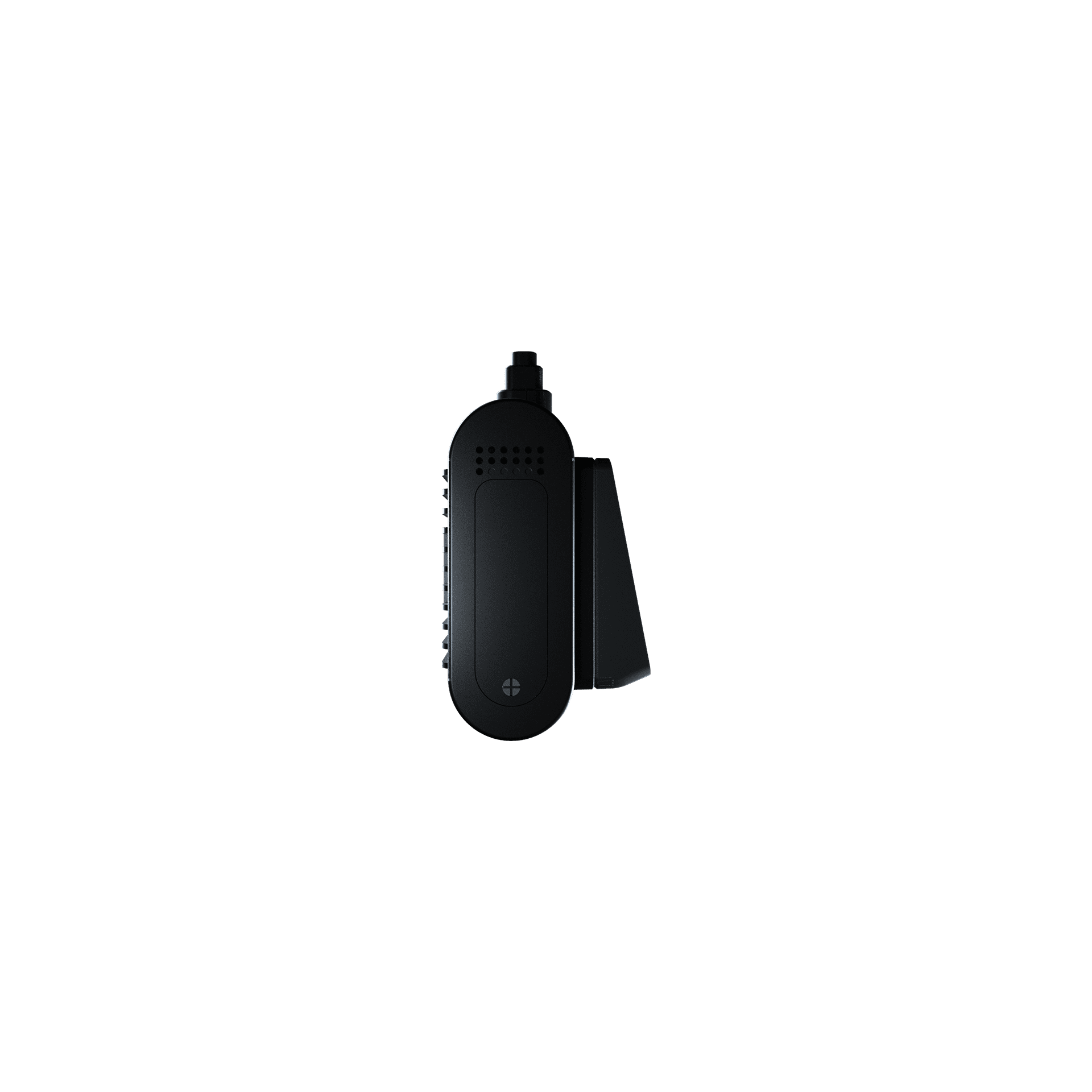

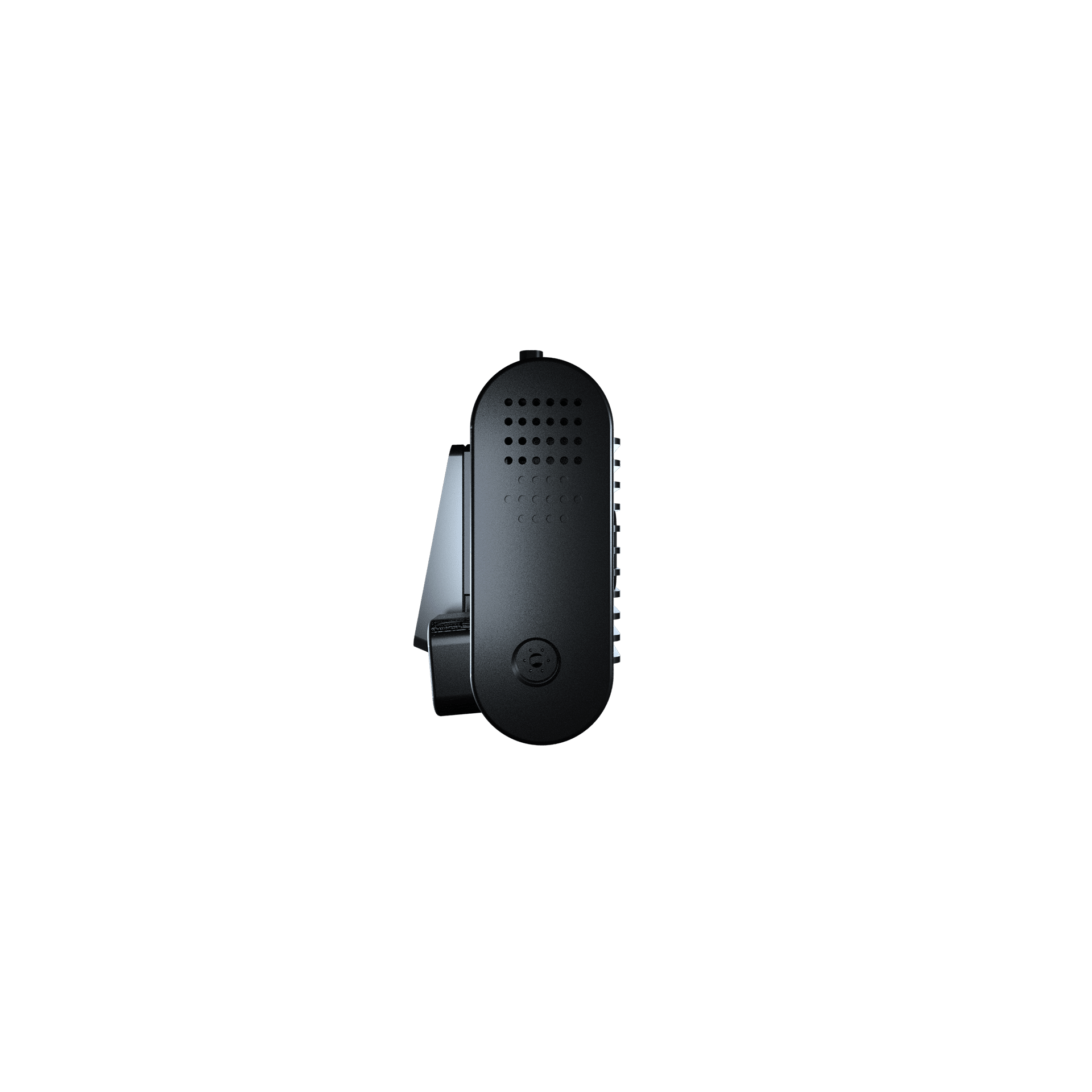

TD02 SIDE VIEW

TD02 is a dedicated dashcam device for online-hailing vehicles, which has integrated the features of positioning, 4G communication, video storage, and transmission. It supports recording one channel of 1080P video and three channels of 720P video. Equipped with active safety algorithms, it enables remote real-time video preview and playback of historical videos. It can also be connected to peripherals such as fare meters, rating devices, and advertising screens. TD02 is suitable for regulated industries such as online-hailing services and can also be used for enterprise supervision.

icon png img

4G LTE Full Network Connectivity

Designed for IoT connectivity in southeast Asian, Latin-American, and European countries

icon png img

Real-time Video

Supports real-time video, and 1 channel of 1080P and 3 channels of 720P HD videos

icon png img

Voice

Supports voice intercom/monitoring

icon png img

Dual-satellite mode Positioning

Supports BeiDou + GPS dual-satellite systems to get more accurate and fast positioning

icon png img

Video Playback

Supports local multi-channel synchronous playback and remote single-channel playback via web platform

icon png img

ADAS AND DSM

Supports Advanced Driver Assistance System(ADAS) + Driver State Monitoring System(DSM)

CELLULAR NETWORK

Communication Network

TD02-SEA:
LTE FDD:B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM:900/1800MHZ

TD02-LA:
LTE FDD:B1/2/3/4/5/7/8/28/66
LTE TDD:B40
WCDMA:B1/2/4/5/8
GSM/EDGE:B2/3/5/8

TD02-EU：
LTE FDD:B1/3/5/7/8/20/28
LTE TDD:B38/40/41
WCDMA:B1/5/8
GSM/EDGE:B3/8

POSITIONING

Constellation Support

GPS/BeiDou

Location Accuracy

<10m (for reference only, positioning error is related to factors such as vehicle location, terrain, and time)

BASIC PARAMETERS

Dimensions

110mm*70mm*28mm(without slide)

Operating Voltage

DC10V-36V

Operating Current

420mA@12V

Power consumption in sleeping mode

6mA@12V(when not charging)

Backup Battery

3.7V 2000mAh lithium battery

Operating Temperature

-20℃~ +60℃

Status LEDs

Yellow; Blue

PRODUCT PERFORMANCE

CPU

Allwinner T507/4 core A7

Operating System

Android

DDR

1GB DDR4

Device Memory

8GB EMMC

Storage

Dual TF card, single card maximum support 256G

Audio/Video

Remote real-time audio and video playback

Sensor

3-axis G-sensor sensor

Camera

Supports up to one 1080P camera and three 720P cameras

Frame Rate

15fps

Bit Rate

4Mbbps (1080P video storage bit rate );
2Mbbps (720P video storage bit rate );
512Kbbps (1080P and 720P video upload bit rate )

Active Safety Algorithm

ADAS and DSM algorithms

Picture Format

PNG

Video Coding

H.264

Video Format

MP4

Audio Coding

G711A

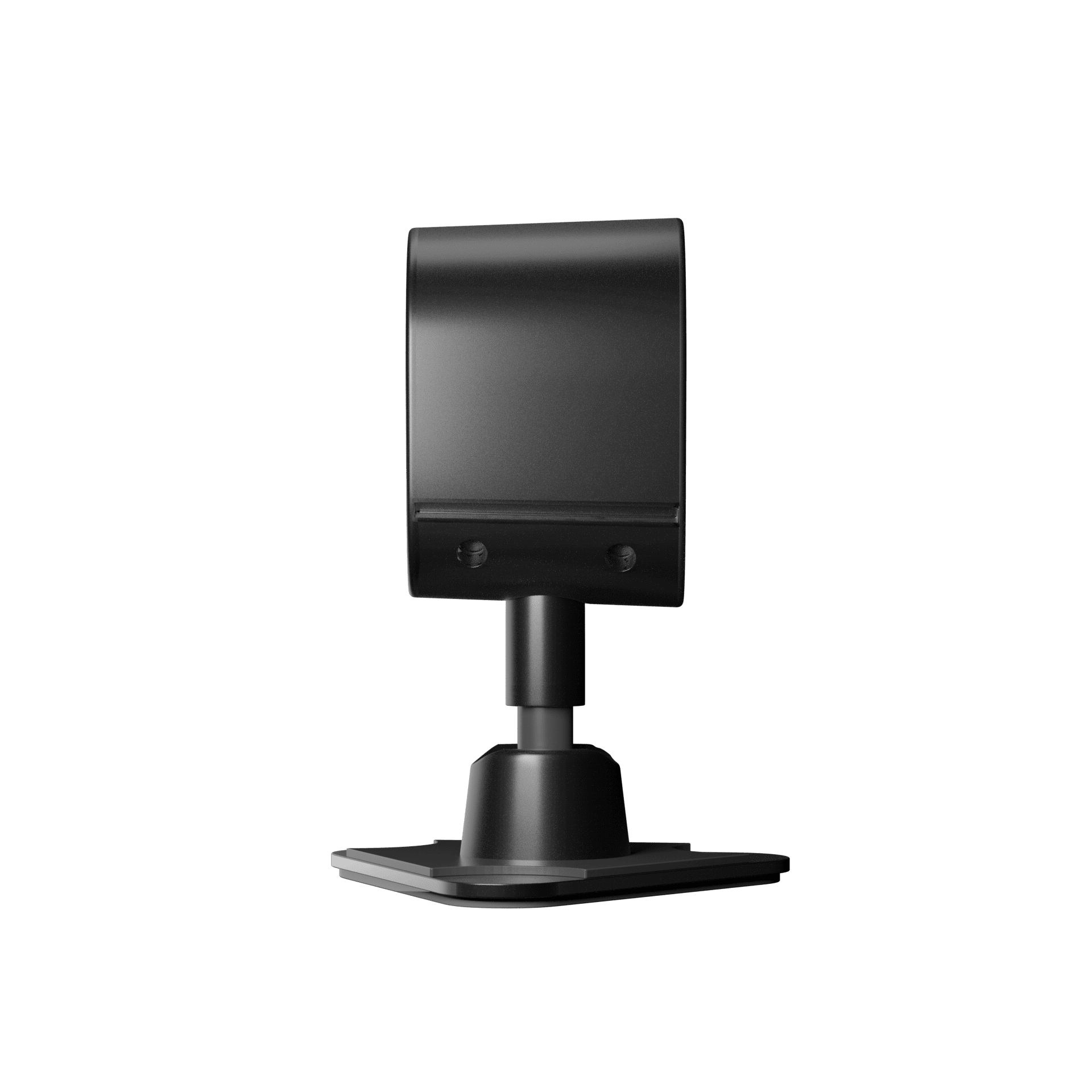

TD02-DL

TD02-DL cabin view add-on camera is speacially designed for TD02 4G AI dash camera as the interior camera to record in the car.
