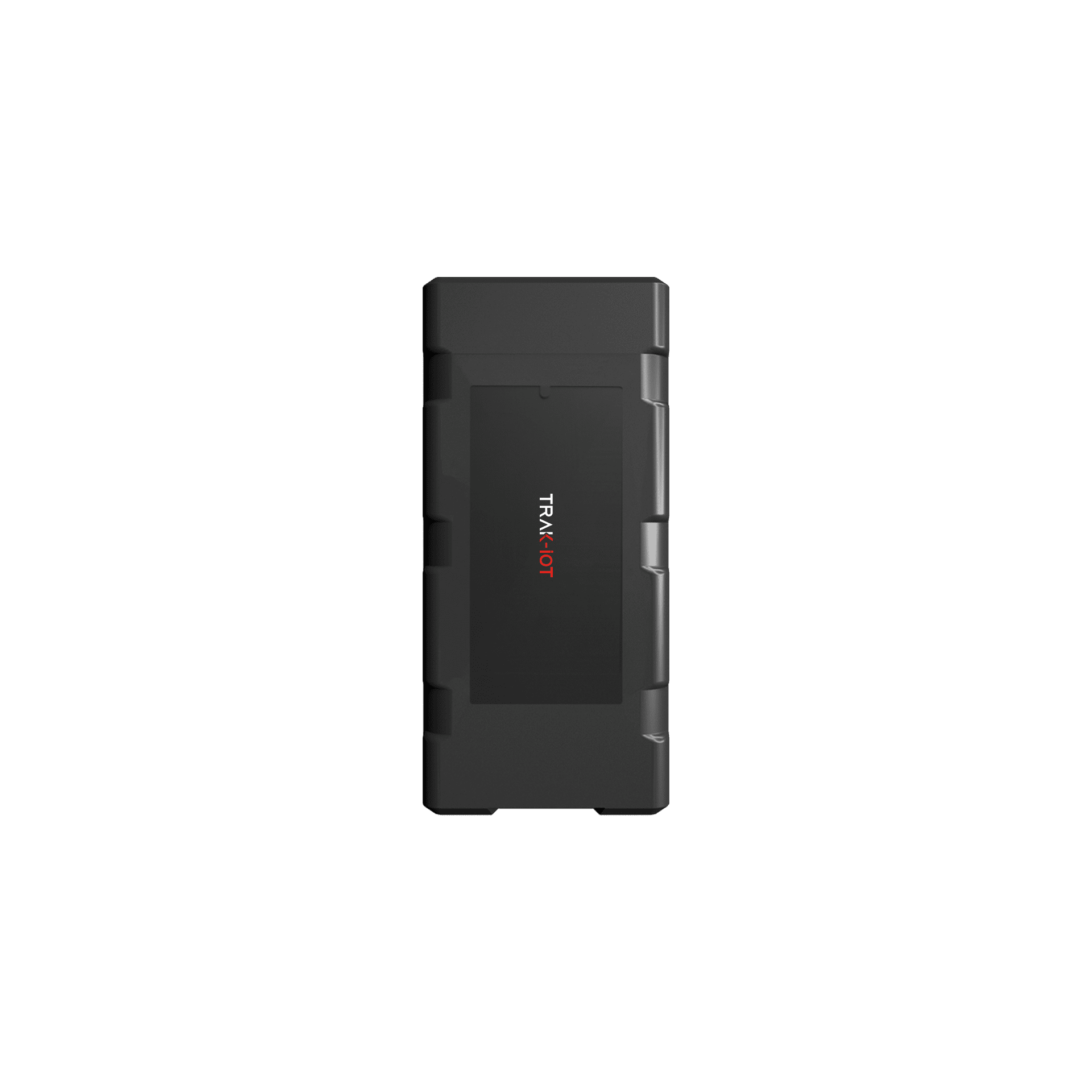

TC04 (4G)

Versatile Vehicle Tracker With 9 Pins

TC04 is a hardwired vehicle tracker based on 4G LTE CAT-M1/NB-IoT connectivity with a 2G GSM network fallback. This device aims to provide the possibility and flexibility of connecting more hardware to enable comprehensive vehicle management systems.

icon png img

4G LTE CAT-M1 Connectivity

Designed for IoT connectivity in North America.

icon png img

9 Cabling Interfaces

More physical connectivity means better possibilities and flexibility of solutions.

icon png img

RS232 Interfaces

For connectivity of the verified temperature, fuel level or tyre pressure sensors.

icon png img

2G Network Fallback

In case 4G connectivity is not available, it keeps communication continuing.

icon png img

Panic Button Allowed

Allows a quick calling solution in case of emergencies by simply pressing a button.

icon png img

Identification Allowed

Enables derivative solutions based on identification.

icon png img

Waterproofing Casing

Designed in IP67 rating.

icon png img

Built-in Battery

Allowing device keeps working once power supply is not available.

icon png img

ACC Detection

Physically detect ignition status, for generate reliable data.

icon png img

Inner Antennas

Both positioning & cellular Antennas are built on board.

icon png img

Real-time Positioning

Employs three satellite system of Beidou (China), GPS(USA) & GNASS (Russia).

icon png img

Built-in Storage

Store data when cellular connection is out.

icon png img

Driving Behavior Detection

Collects data of Driving performances for generate reliable reports of driving behavior analysis.

icon png img

Remote Engine Cut-off

Physically disable the vehicle engine from a distance away without a limitation.

icon png img

Geo-fencing Setting & Alert

Support setting either on the hardware itself or remotely on a software.

icon png img

OTA updates

This is basic way for features update, debug and parameters reset.

CELLULAR NETWORK

Operating Band

Cat M1:

LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/

B18/B19/B20/B25/B26*/B27/B28/B66/B85

Cat NB2:

LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/

B19/B20/B25/B26*/ B28/B66/B71/B85

EGPRS:

850/900/1800/1900MHz

Data Transmission

Cat M1: Max. 588 Kbps(DL) /1119 Kbps/(UL)

Cat NB2: Max. 127 Kbps(DL) /158.5 Kbps (UL)

GPRS: Max. 107 Kbps(DL) /85.6 Kbps(UL)

EDGE: Max. 296 Kbps(DL) /236.8 Kbps(UL)

Cellular Antenna

Internal

POSITIONING

Constellation Support

GPS/GLONASS/BeiDou/Galileo

Channels

72 channels

Sensitivity

-167dBm (Tracking)

-160dBm (Reacquisition)

-148dBm (Cold start)

-157dBm (Hot start)

Location Accuracy

2.5m (CEP)

Standalone TTFF

26S (Cold start)

1S (Hot start)

2S (Aided starts)

GNSS Antenna

Internal

REALIABILITIES

Operating Temperature

-20℃ ~+70℃

Storage Temperature

-40℃ ~+85°C

Battery Storage Temperature

-40℃ ~+85°C

Operating Humidity

5% to 95% non-condensing

PHYSICAL

Dimensions

94.3*43.5*19.5mm

Weight

103g

Ingress Protection Rating

IP67

Back-up Battery

Rechargeable 600mAh 3.7V Li-polymer

Operating Voltage

9-36 VDC with overvoltage protection

Power Consumption

Active mode: 29.4mA @12V

Sleep mode: 5.3mA @12V

Deep sleep mode: 2.9mA @12V

INTERFACES

Digital Input (Ignition)

1

Digital Output

2

Configurable Input (Digital input/1-Wire)

1

Serial Interface

1

Accelerometer

3-axis accelerometer

Status LEDs

3 (Power, Cell, GNSS)

SP01REL - Tracker Replay -Front View

GRELAY-12V

The relay is the key element to enable extrinsic command of immobilization to an vehicle. It universally work well with any trakcer who has set an digital output interface for the performance.
SP02CBL - Extension cable harness of TRAK-IOT's vehicle trackers - 9 pins - overview

STC04CAB-9

STC04CAB-9 is an extension cable harness for 9-pins trackers . The harness is fit with a pin-to-pin connector that allows quick but appropriate lockup with TRAK-IOT's 9-pin trackers. It aims to help prolonging length of the connected wires between trackers and vehicles or accessories.
