4G Basic-TC06

4G Vehicle Tracker

TC06 is a 4G anti-tampering GPS tracker specifically designed for automotive financial institutions, intermediary agencies, and car dealers. It is used for real-time monitoring and asset protection. With the ultra-compact size and stable performance, it’s the most suitable 4G vehicle tracker for the Asia-pacific countries.

icon png img

4G LTE Connectivity

Designed for IoT connectivity in Asia-pacific countries.

icon png img

Compact Size

One of the right features enable the invisible installation

icon png img

ACC Detection

Physically detect ignition status, for generate reliable data.

icon png img

Built-in Battery

Allowing device keeps working once power supply is not available.

icon png img

Real-time Positioning

Keep broadcasting instant positioning and timing information as per the time interval set

icon png img

Built-in Storage

Store data when cellular connection is out.

icon png img

Driving Behavior Detection

Collects data of Driving performances for generate reliable reports of driving behavior analysis.

icon png img

Internal Antennas

Both positioning & cellular antennas are built on board.

icon png img

Remote Engine Cut-off

Physically disable the vehicle engine from a distance away without a limitation.

icon png img

Geo-fencing Setting & Alert

Support setting either on the hardware itself or remotely on a software.

icon png img

OTA updates

This is basic way for features update, debug and parameters reset.

CELLULAR NETWORK

Operating Band

TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B3/B5/B8

Maximum Output

LTE FDD: 23±2dBm
LTE TDD:23±2dBm

Cellular Antenna

Internal

POSITIONING

Positioning Modes

GPS/BeiDou/LBS

Sensitivity

-160dBm (Tracking)
-158dBm (Acquisition)

Location Accuracy

<10m

TTFF

≤60S (Cold start)
≤15S (Hot start)

GNSS Antenna

Internal

PHYSICAL

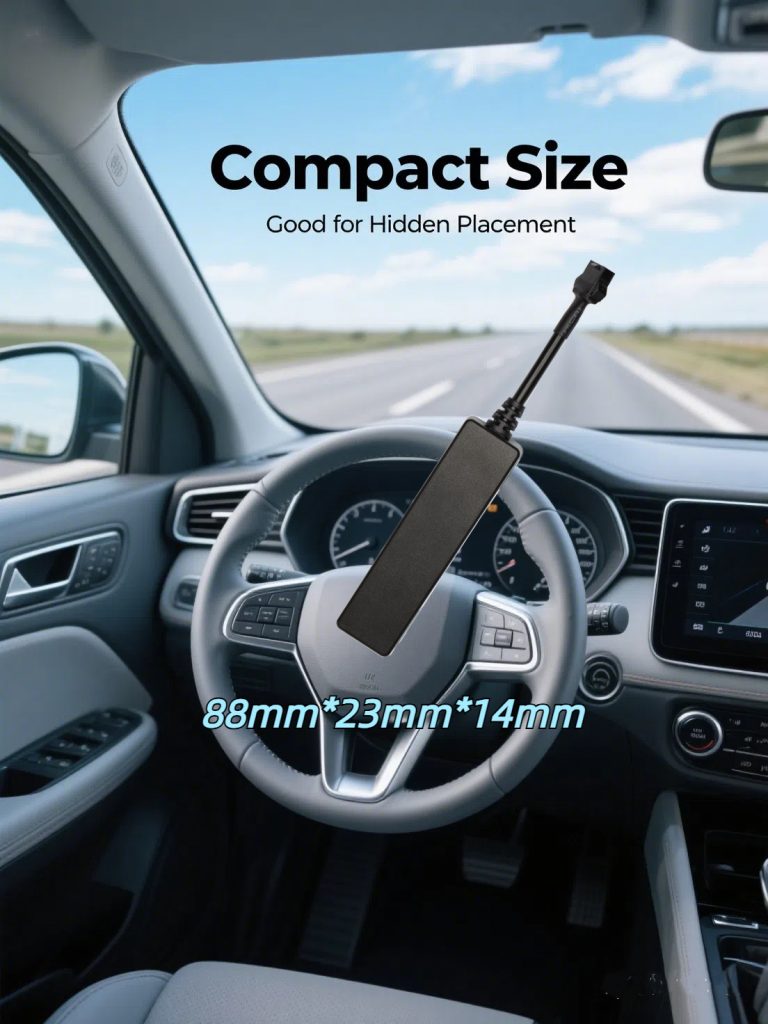

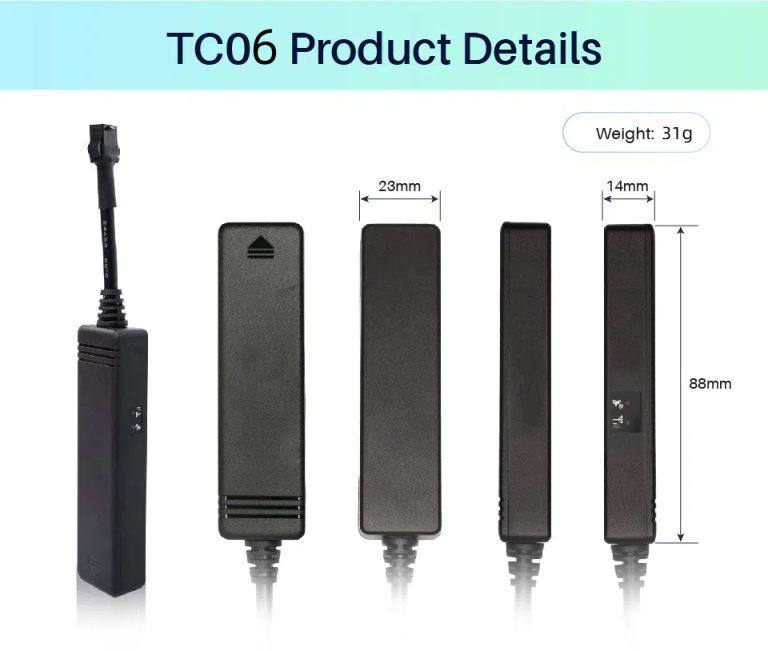

Dimensions

88mm *23mm*14mm

Weight

31g

Back-up Battery

55mAh Li-polymer

Operating Voltage

DC9-36V

INTERFACES

Digital Input

1 digital input for ignition detection

Digital Output

1 digital output for relay control

Accelerometer

3-axis accelerometer

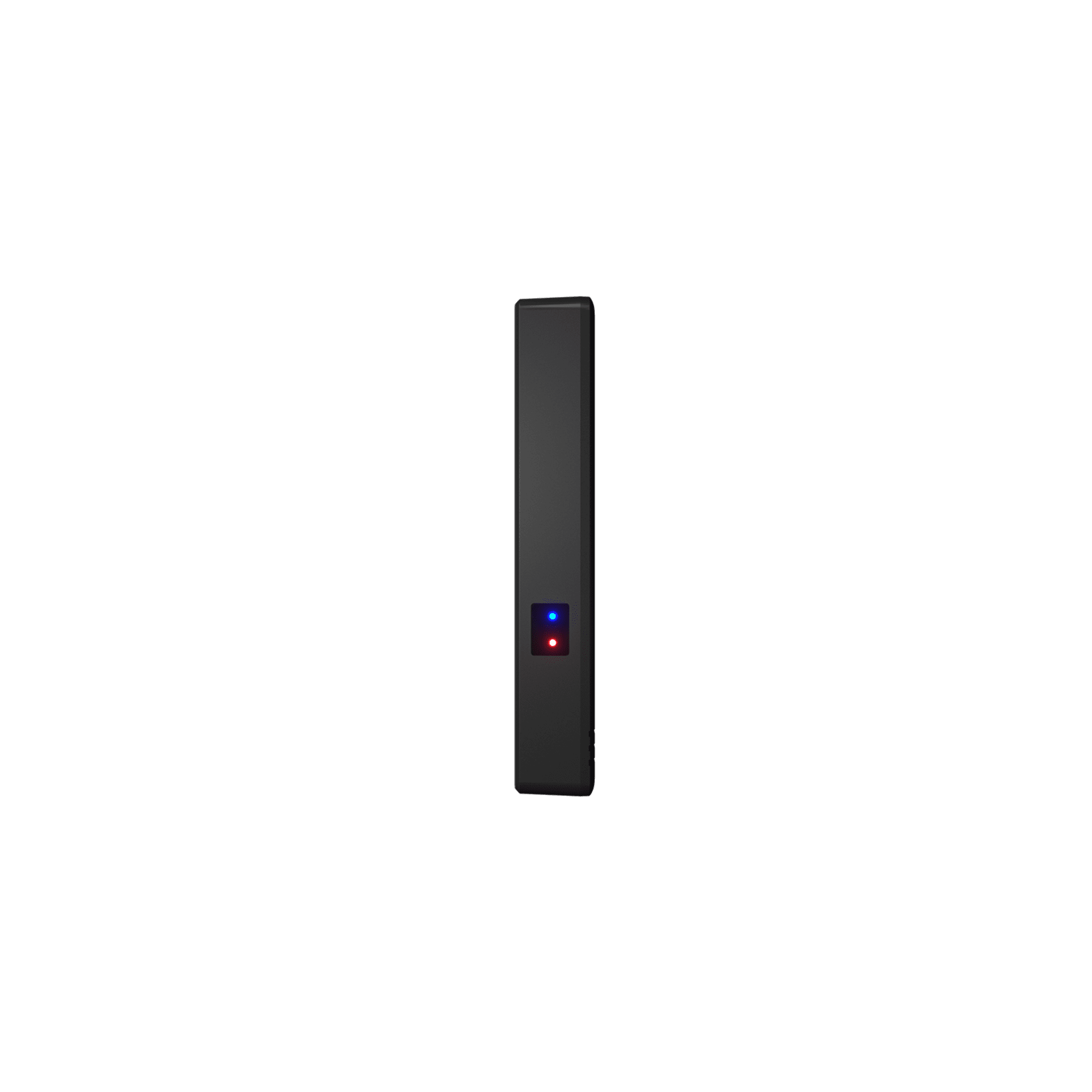

Status LEDs

2 (GPS, NET)

RELIABILITIES

Operating Temperature

-25℃ ~+75℃

Storage Temperature

-40℃ ~+85°C
