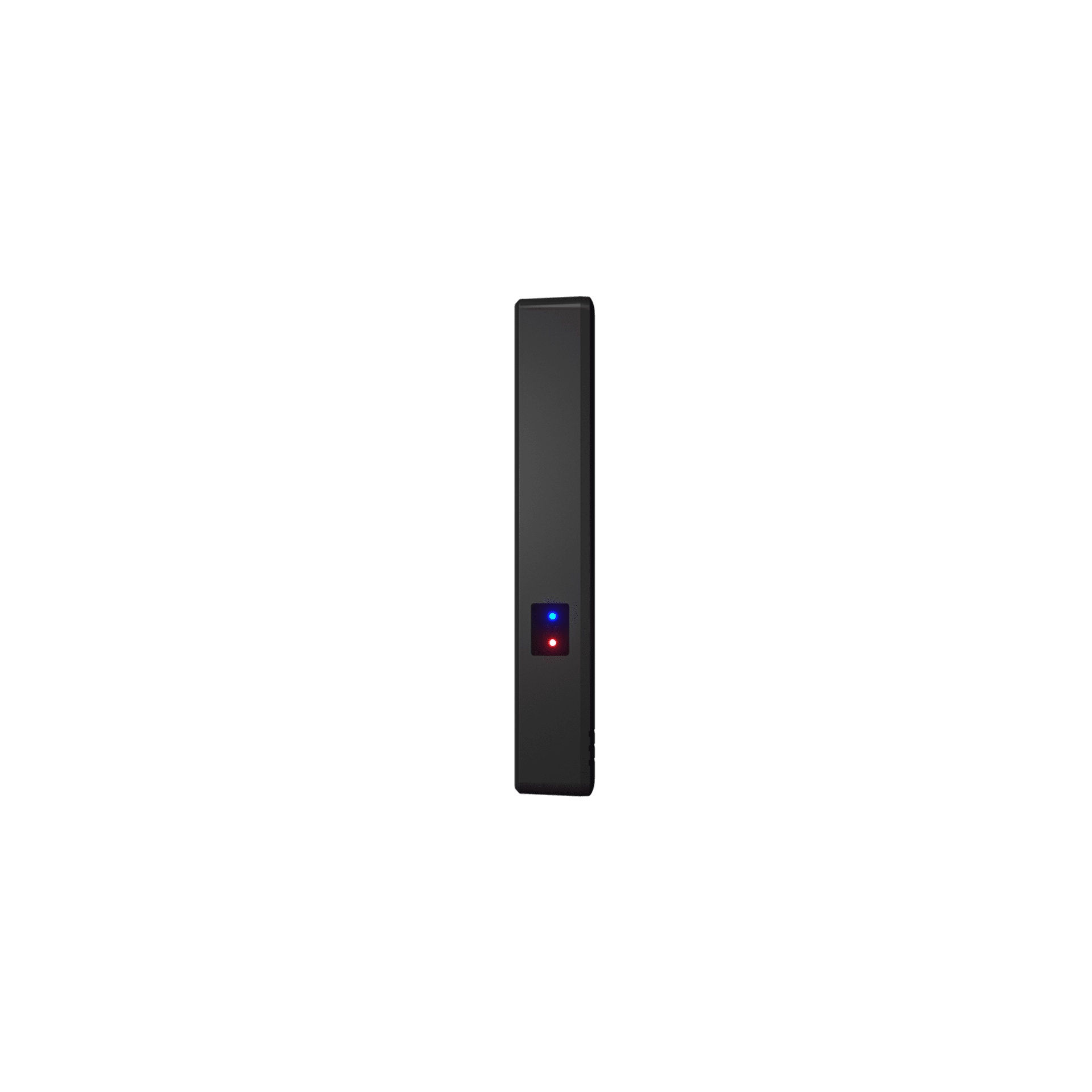

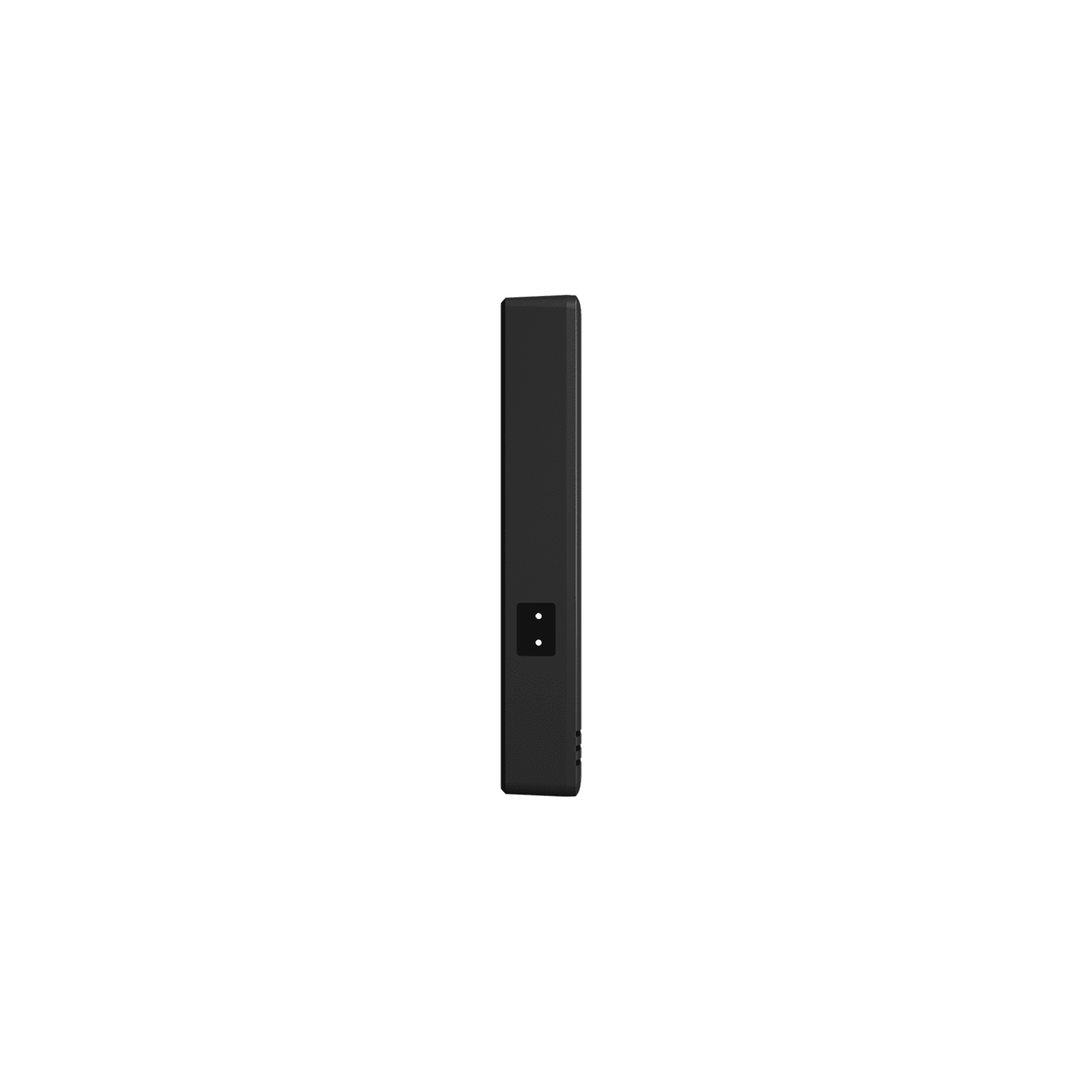

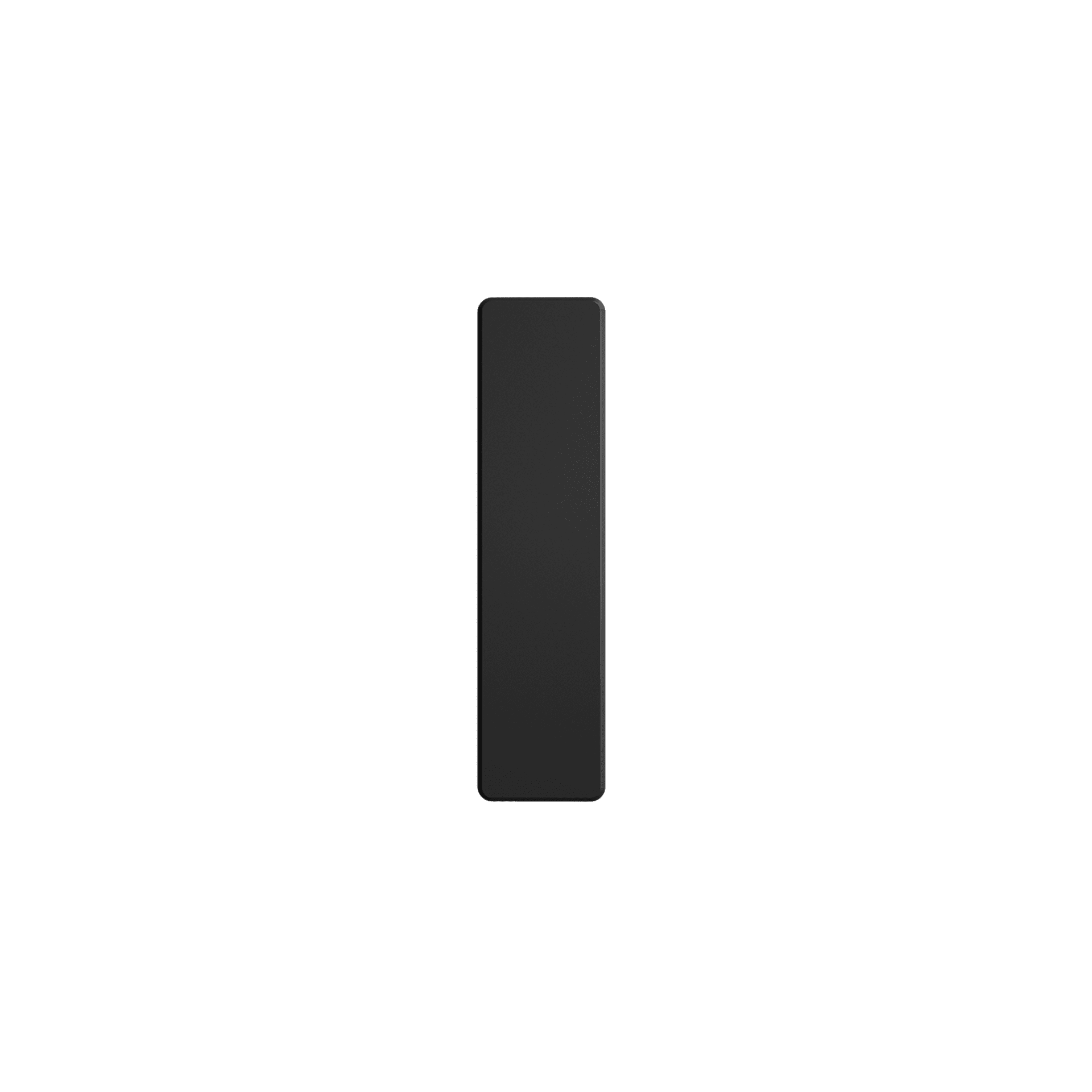

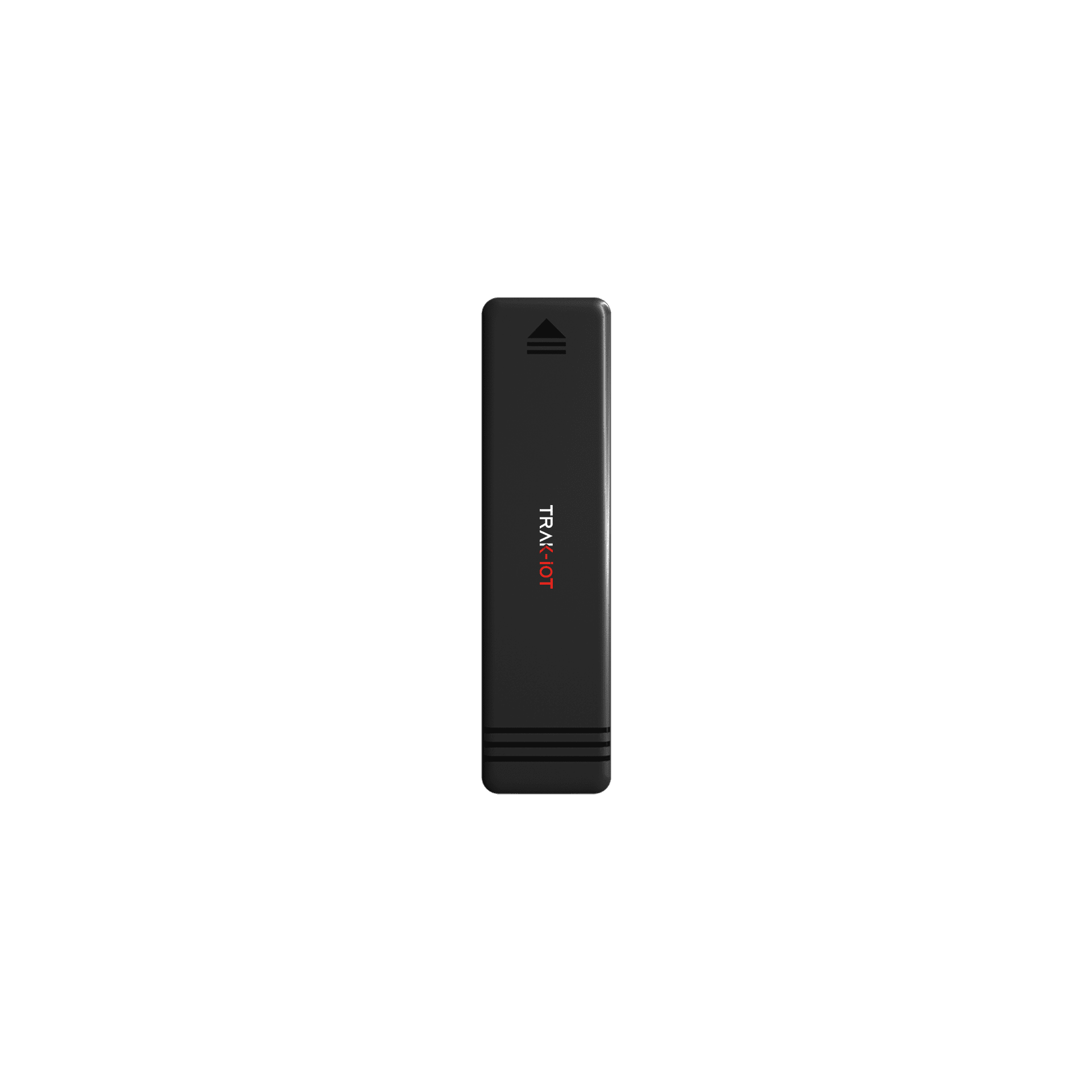

TC01

2G Vehicle Tracker

TC01 is one of the typical vehicle trackers based on 2G cellular connectivity. This hardwired tracker is of reliable quality as it has been installed and being used on hundreds of thousands of vehicles. It could more precisely produce the information and data in terms of event detection. It is a what can lay your business a firm foundation with pervasiveness possibility among the same kinds.

icon png img

Compact Size

One of the right features enable the invisible installation

icon png img

Built-in Battery

Allowing device keeps working once power supply is not available.

icon png img

ACC Detection

Physically detect ignition status, for generate reliable data.

icon png img

Internal Antennas

Both positioning & cellular antennas are built on board.

icon png img

Real-time Positioning

Keep broadcasting instant positioning and timing information as per the time interval set

icon png img

Built-in Storage

Store data when cellular connection is out.

icon png img

Driving Behavior Detection

Collects data of Driving performances for generate reliable reports of driving behavior analysis.

icon png img

Remote Engine Cut-off

Physically disable the vehicle engine from a distance away without a limitation.

icon png img

Geo-fencing Setting & Alert

Support setting either on the hardware itself or remotely on a software.

icon png img

OTA updates

This is basic way for features update, debug and parameters reset.

CELLULAR NETWORK

Operating Band

GSM: 850/900/1800/1900MHz

Data Transmission

GPRS: 85.6kbps DL/85.6kbps UL(multi-slot class 12)

Cellular Antenna

Internal

POSITIONING

Constellation Support

GPS/GLONASS/BeiDou/Galileo

Sensitivity

-165dBm (Tracking)

-163dBm (Hot start)

-151dBm (Warm start)

-148dBm (Cold start)

Location Accuracy

<2.5m(CEP)

Standalone TTFF

31S (Cold start)

31S (Wam start)

<1S (Hot)

GNSS Antenna

Internal

REALIABILITIES

Operating Temperature

-20℃ ~+70℃

Storage Temperature

-40℃ ~+85°C

Battery Storage Temperature

-40℃ ~+85°C

Operating Humidity

5% to 95% non-condensing

PHYSICAL

Dimensions

88mm*23mm*14mm

Weight

29g

Back-up Battery

Rechargeable 55mAh 3.7V Li-polymer

Operating Voltage

9-36 VDC with overvoltage protection

INTERFACES

Digital Input (Ignition)

1 digital input for ignition detection

Digital Output

1 digital output for relay control

Accelerometer

3-axis accelerometer

Status LEDs

2 (GPS, NET)

SP01REL - Tracker Replay -Front View

GRELAY-12V

The relay is the key element to enable extrinsic command of immobilization to an vehicle. It universally work well with any trakcer who has set an digital output interface for the performance.
SP01CBL | 4 pins extension cable harness of TRAK-IOT's vehicle trackers

GCAB-4

GCAB-4 is an extension cable harness for the 4-pins trackers. The harness is fit with a pin-to-pin connector that allows quick but appropriate lockup with TRAK-IOT's 4-pin trackers. It aims to help prolonging length of the connected wires between trackers and vehicles or accessories.

Coming soon...
