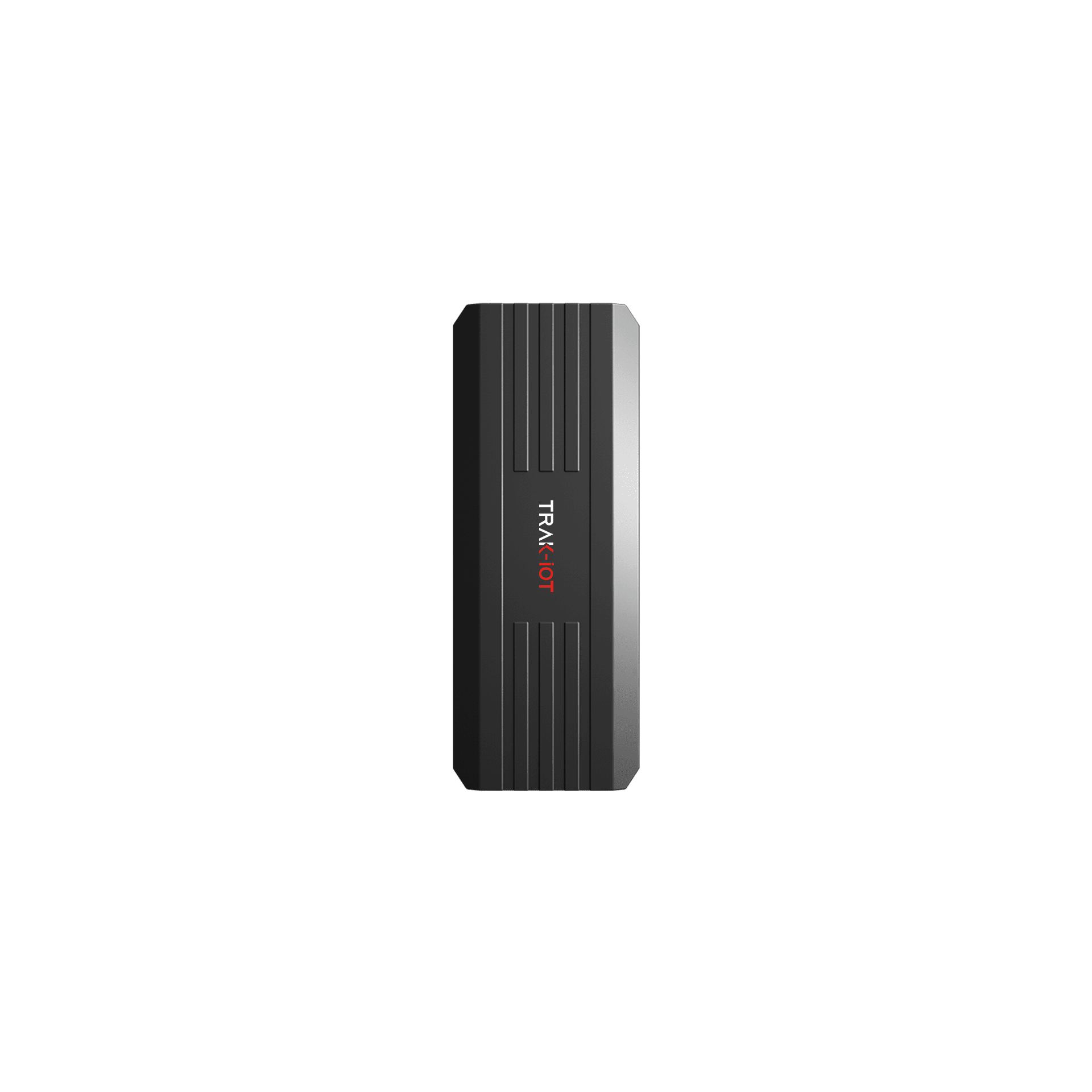

TC02

4G GPS Vehicle Tracker

TC02 is a 4-wire vehicle tracker, designed with 4G connectivity with 2G network fallback. It is leveled as a primary hardware to offer basic solutions of essential functionalities for vehicle tracking and management. While, customers can still maintain the most possible competition edges when switching the business from 2G to 4G network.

4G LTE CAT-1 Connectivity

Designed for IoT connectivity in Southeast Asian, African & European countries.

2G Network Fallback

In case 4G connectivity is not available, it keeps communication continuing.

Built-in Battery

Allowing device keeps working once power supply is not available.

ACC Detection

Physically detect ignition status, for generate reliable data.

Internal Antennas

Both positioning & cellular Antennas are built on board.

Real-time Positioning

Employs three satellite system of Beidou (China), GPS(USA) & GNASS (Russia).

Built-in Storage

Store data when cellular connection is out.

Driving Behavior Detection

Collects data of Driving performances for generate reliable reports of driving behavior analysis.

Remote Engine Cut-off

Physically disable the vehicle engine from a distance away without a limitation.

Geo-fencing Setting & Alert

Support setting either on the hardware itself or remotely on a software.

OTA updates

This is basic way for features update, debug and parameters reset.

CELLULAR NETWORK

Operating Band

Cat 1: B1/B2/B3/B4/B5/B7/B8/B20/B28/B34/B39/B40/B41 /B66

GSM: 850/900/1800/1900 MHz

Data Transmission

LTE FDD Rel.13: 10Mbps DL/5Mbps UL

LTE TDD Rel.13: 8.2Mbps DL/3.4Mbps UL

GPRS: 85.6kbps DL/85.6kbps UL(multi-slot class 12)

Cellular Antenna

Internal

POSITIONING

Constellation Support

GPS/GLONASS/BeiDou

Sensitivity

-162dBm (Tracking)

-160dBm(Reacquisition)

-148dBm (Cold start)

-156dBm (Hot start)

Location Accuracy

<2m(1σ)

Standalone TTFF

≤32S (Cold start)

≤1S (Hot start)

≤1S (Reacquisition)

GNSS Antenna

Internal

REALIABILITIES

Operating Temperature

-20℃ ～+70℃

Storage Temperature

-40℃ ～+85°C

Battery Storage Temperature

-40℃ ～+85°C

Operating Humidity

5% to 95% non-condensing

PHYSICAL

Dimensions

87(L)*34(W)*14(H)mm

Weight

42g

Back-up Battery

Rechargeable 55mAh 3.7V Li-polymer

Operating Voltage

9-36 VDC with overvoltage protection

INTERFACES

Digital Input (Ignition)

1 digital input for ignition detection

Digital Output

1 digital output for relay control

Accelerometer

3-axis accelerometer

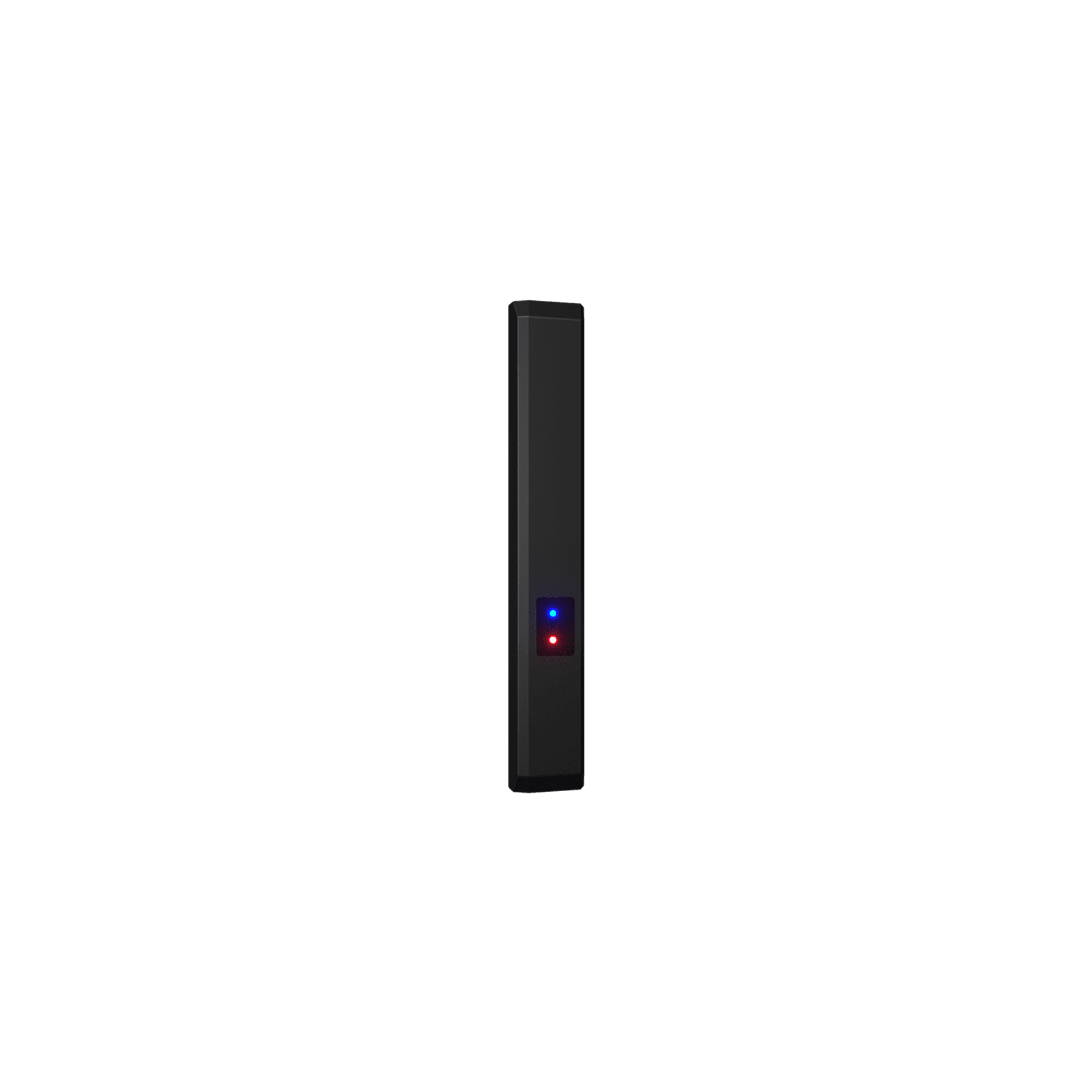

Status LEDs

2 (GPS, NET)

GRELAY-12V

The relay is the key element to enable extrinsic command of immobilization to an vehicle. It universally work well with any trakcer who has set an digital output interface for the performance.

SP01CBL | 4 pins extension cable harness of TRAK-IOT's vehicle trackers

GCAB-4

GCAB-4 is an extension cable harness for the 4-pins trackers. The harness is fit with a pin-to-pin connector that allows quick but appropriate lockup with TRAK-IOT's 4-pin trackers. It aims to help prolonging length of the connected wires between trackers and vehicles or accessories.

coming soon...
