TW02

4G Portable GPS Tracker

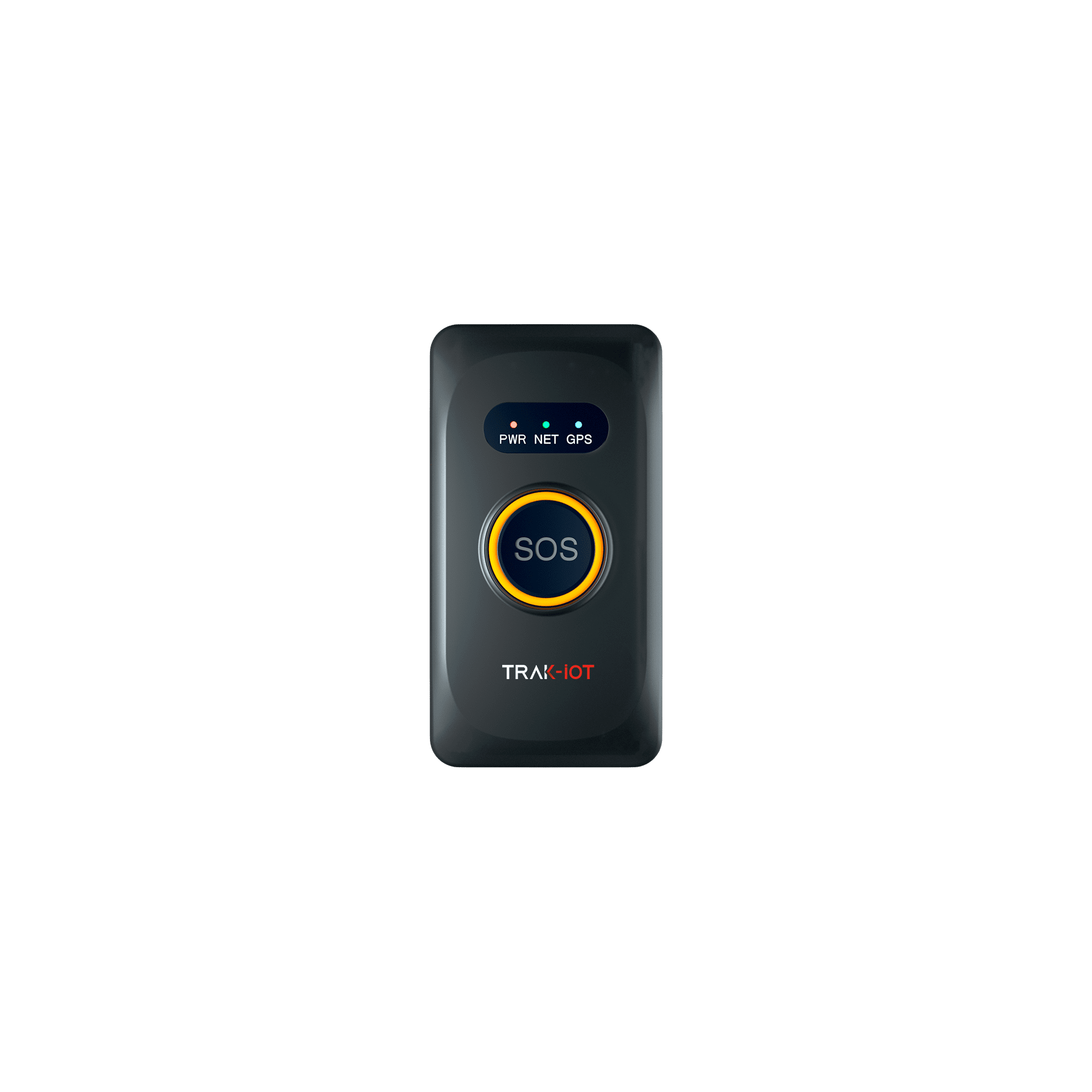

TW02 Asset Tracker Front View

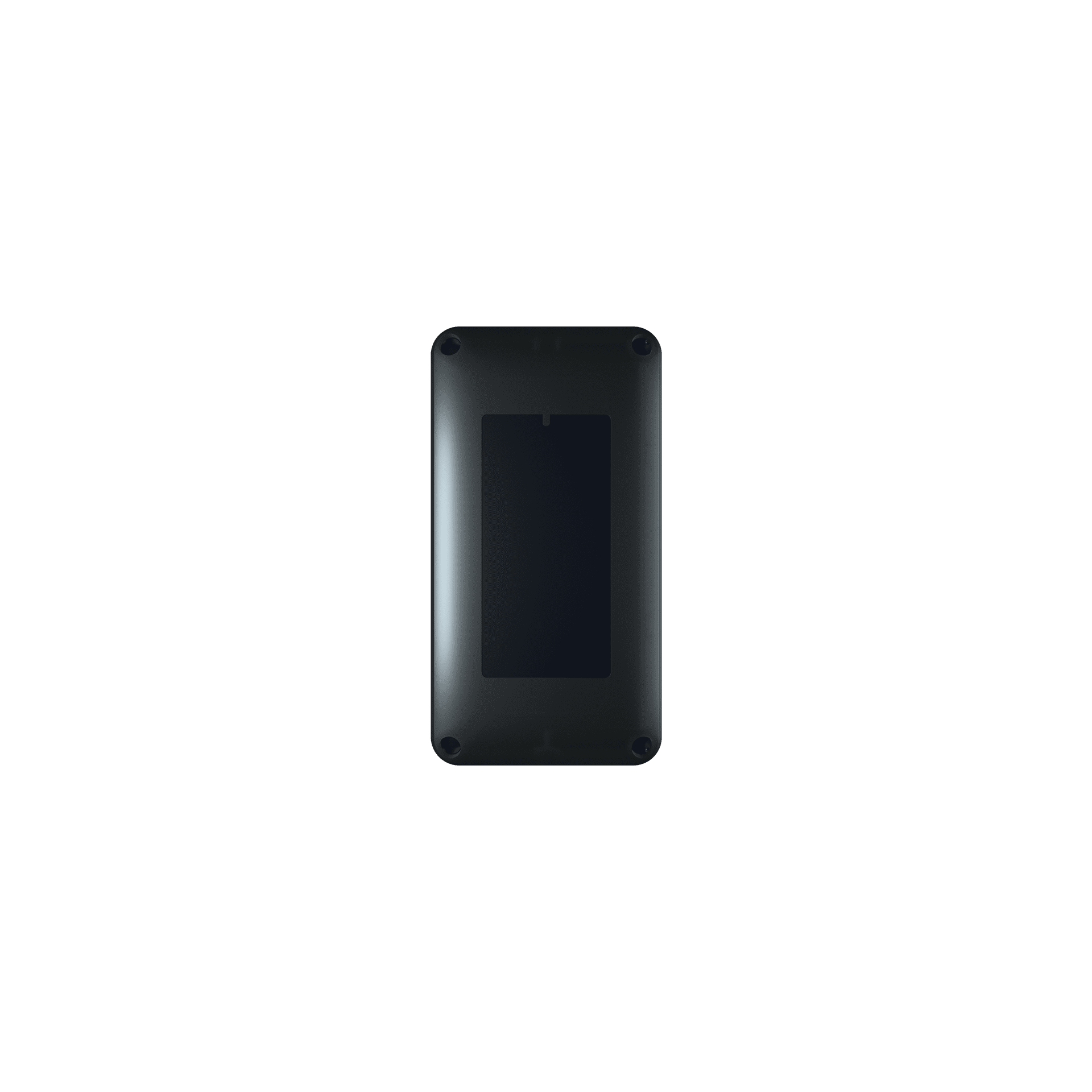

TW02 Asset Tracker

TW02 is a mini portable GPS tracking device engineered for personal security and mobile asset management. This device supports LTE Cat-M1/NB-IoT network with 2G fallback. It includes the features of small size, high-performance internal GNSS antenna, and ergonomically designed SOS emergency button, which make it an ideal solution for personal safety and asset management applications.

icon png img

4G LTE CAT-M1 Connectivity

Designed for IoT connectivity in North America.

icon png img

2G Network Fallback

In case 4G connectivity is not available, it keeps communication continuing.

icon png img

SOS Emergency Button

Ergonomically designed SOS emergency button to call for help

icon png img

Built-in Battery

Internal rechargeable battery extends battery life.

icon png img

Compact Size and portable

Perfectly suitable for the elderly, children, lone workers, mobile personnel management, adventures, etc.

icon png img

triple-axis motion sensor

Built-in triple-axis motion sensor to detect “man down”.

icon png img

Type-C charging interface

Convenient Type-C charging interface, good for fast and safe charging.

icon png img

Built-in Antenna

High sensitivity GNSS antenna for fast and accurate positioning

icon png img

Waterproofing Casing

Designed in IP66 rating.

Product Details

Unlock More Visually

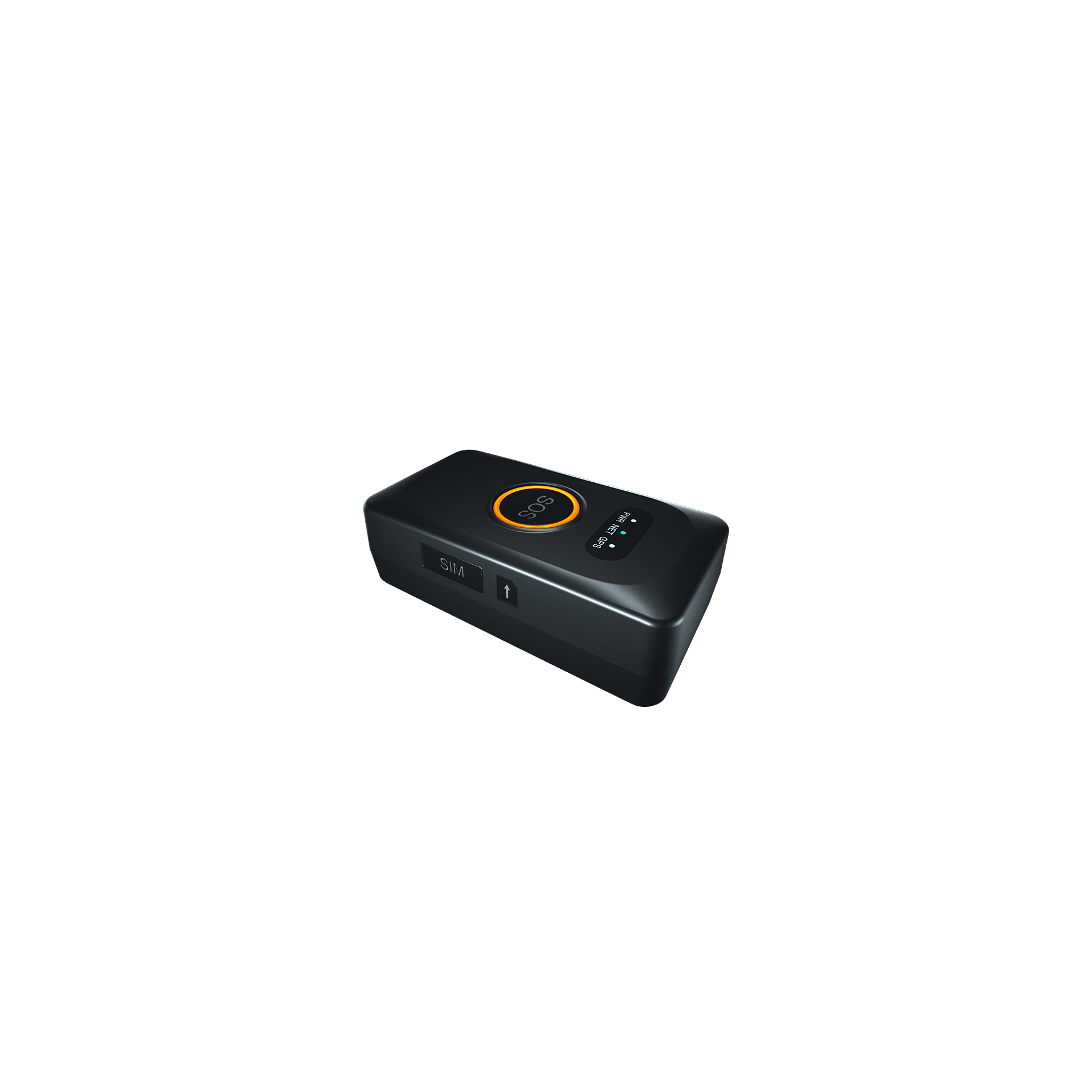

TW02 4G Portable Tracker
4G+2G Connectivity
Accurate positioning
IP66 Waterproofing
Application scenarios
SOS Button
Motion Detection
compact size
Geo-fencing
built-in battery
Real-time Positioning
Dimensions
LED patterns

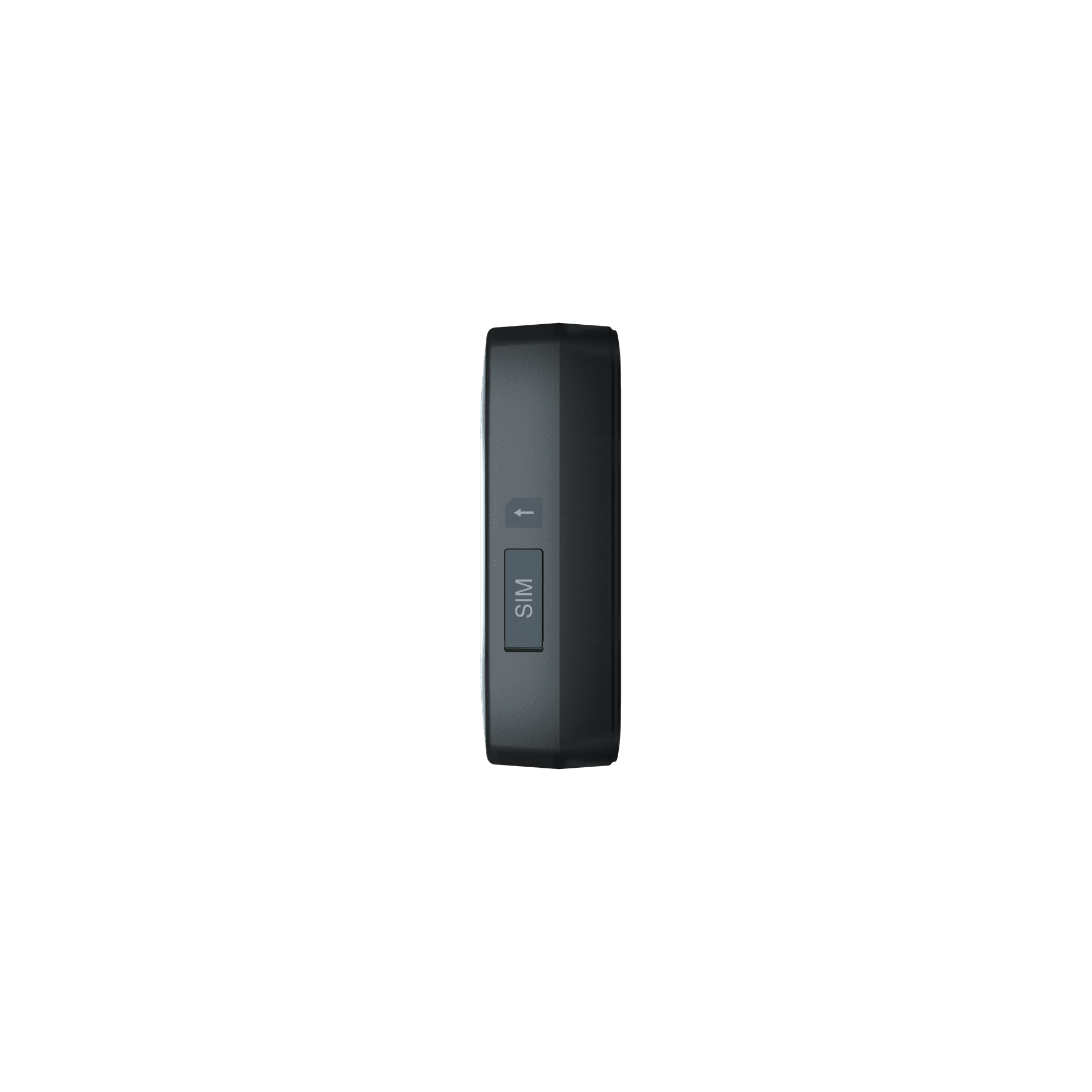

Sim Card
Device Use
Previous
Next

CELLULAR NETWORK

Operating Band

Cat M1:
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/
B18/B19/B20/B25/B26*/B27/B28/B66/B85
Cat NB2:
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/
B19/B20/B25/B26*/ B28/B66/B71/B85
EGPRS:
850/900/1800/1900MHz

Data Transmission

Cat M1:
Max. 588 Kbps(DL) /1119 Kbps/(UL)
Cat NB2:
Max. 127 Kbps(DL) /158.5 Kbps (UL)
GPRS:
Max. 107 Kbps(DL) /85.6 Kbps(UL)
EDGE:
Max. 296 Kbps(DL) /236.8 Kbps(UL)

Cellular Antenna

Internal

POSITIONING

Constellation Support

GPS/GLONASS/BeiDou/Galileo

Channels

72 channels

Sensitivity

-167dBm (Tracking)
-160dBm (Reacquisition)
-148dBm (Cold start)
-157dBm (Hot start)

Location Accuracy

2.5m (CEP)

Standalone TTFF

26S (Cold start)
1S (Hot start)
2S (Aided starts)

GNSS Antenna

Internal

RELIABILITIES

Operating Temperature

-20℃ ～+60℃

Storage Temperature

-40℃ ～+85°C

Battery Storage Temperature

-40℃ ～+85°C

Operating Humidity

5% to 95% non-condensing

PHYSICAL

Dimensions

78mm*42mm*25.5mm

Weight

94g

Ingress Protection Rating

IP66

Internal Battery

Rechargeable 2700mAh 3.7V Li-polymer

Charger Voltage

5V/2A

Standby Time

1 report per 5mins: 200h

INTERFACES

Charging and Data Transmission

USB Type-C

Power Button

1

SOS Button

1 (Used for SOS alarm or setting Geo-fence)

Accelerometer

1 (3-axis accelerometer)

Status LEDs

3 (NET, GPS, PWR)

Digital Inputs

1 (Positive trigger input for ignition detection)
1 (Negative trigger input for normal use)
