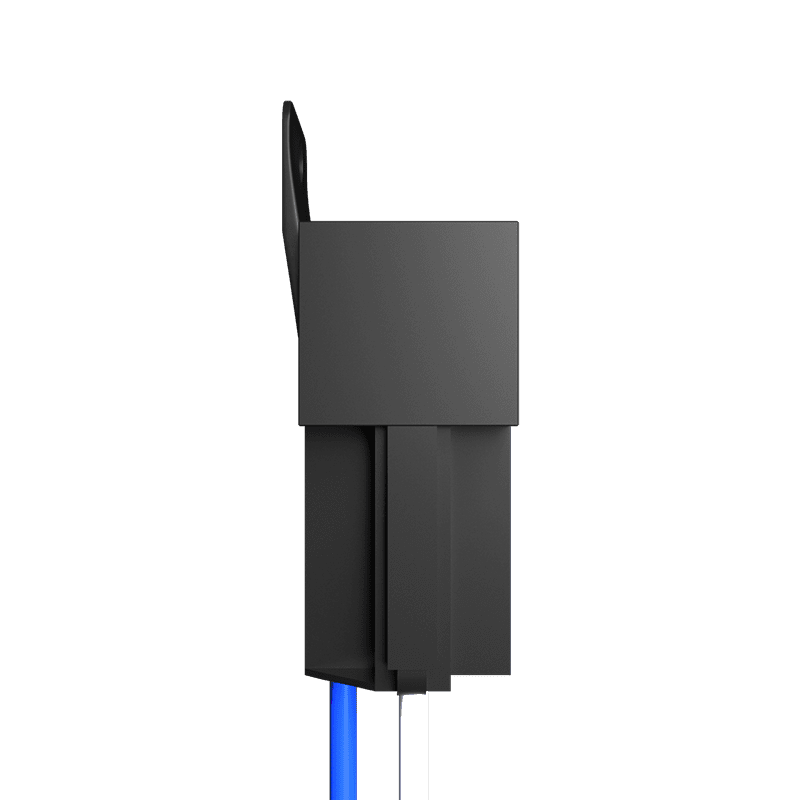

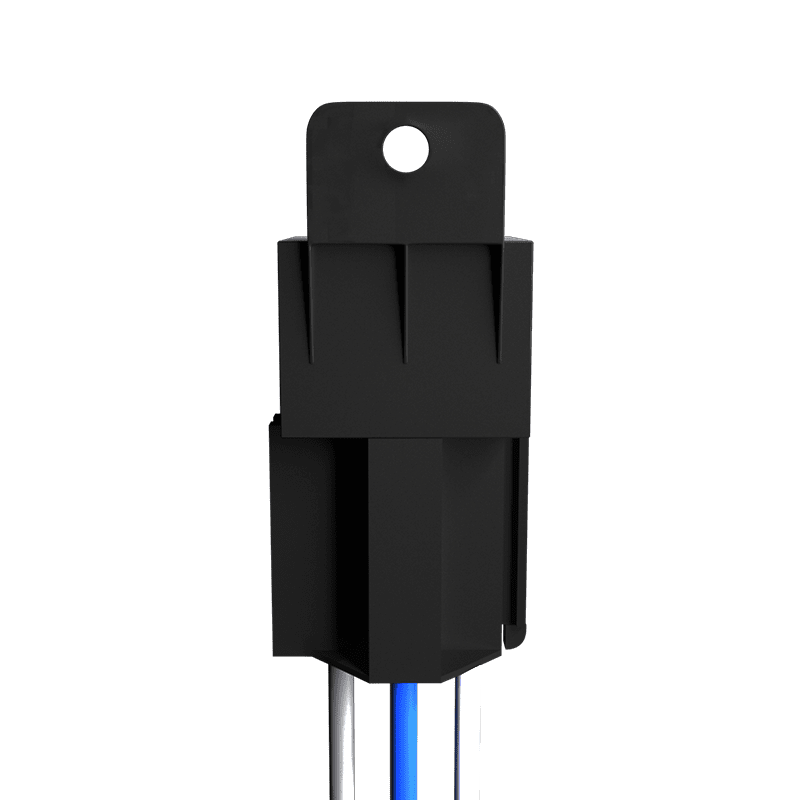

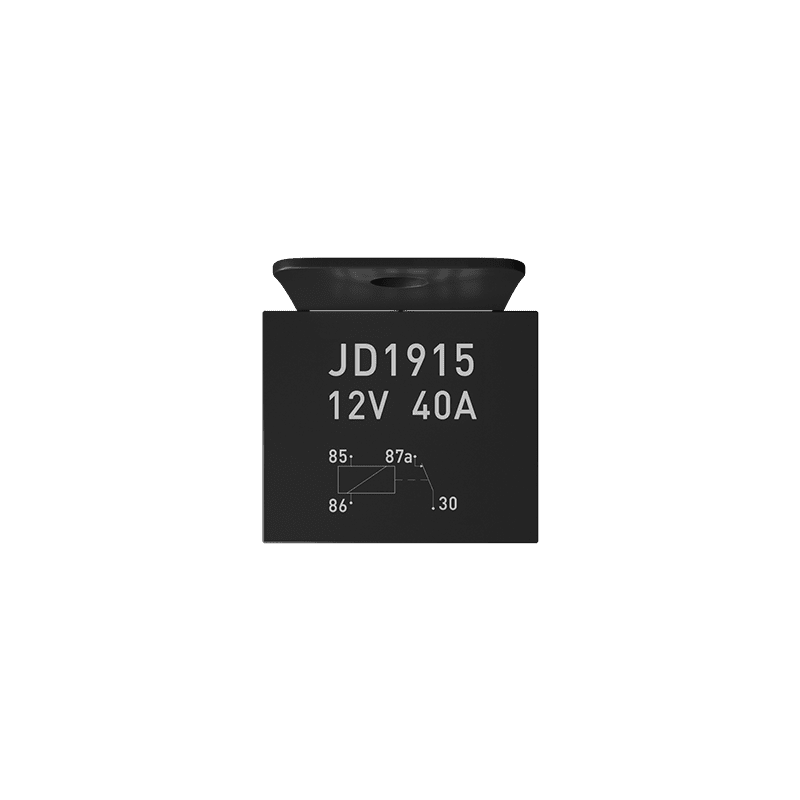

GRELAY-12V

Vehicle Tracker Relay

The relay is the key element to enable extrinsic command of immobilization to an vehicle. It universally work well with any trakcer who has set an digital output interface for the performance.


Engine Disabling

To break off the power circuit to engine's working

PHYSICAL

Dimensions

28mm*28mm*25.5mm

Rated Voltage

DC 12V/24V

Coil Power

1.6W/1.8W

Contact Form

1A, 1C

Contact Material

AgSno2

AgSno2

10/20A

Maximum switching voltage

27VDC

Insulation Resistance

100MΩ

Dielectric Strength

500VAC

Actuation Time

10ms/10ms

REALIABILITIES

Environment Temperature

-40℃~+85℃

Mechanical Life

1×106

Electrical Life

1×105

INTERFACES

Male Connector

4-PIN
