TM03

4G Mobile DVR

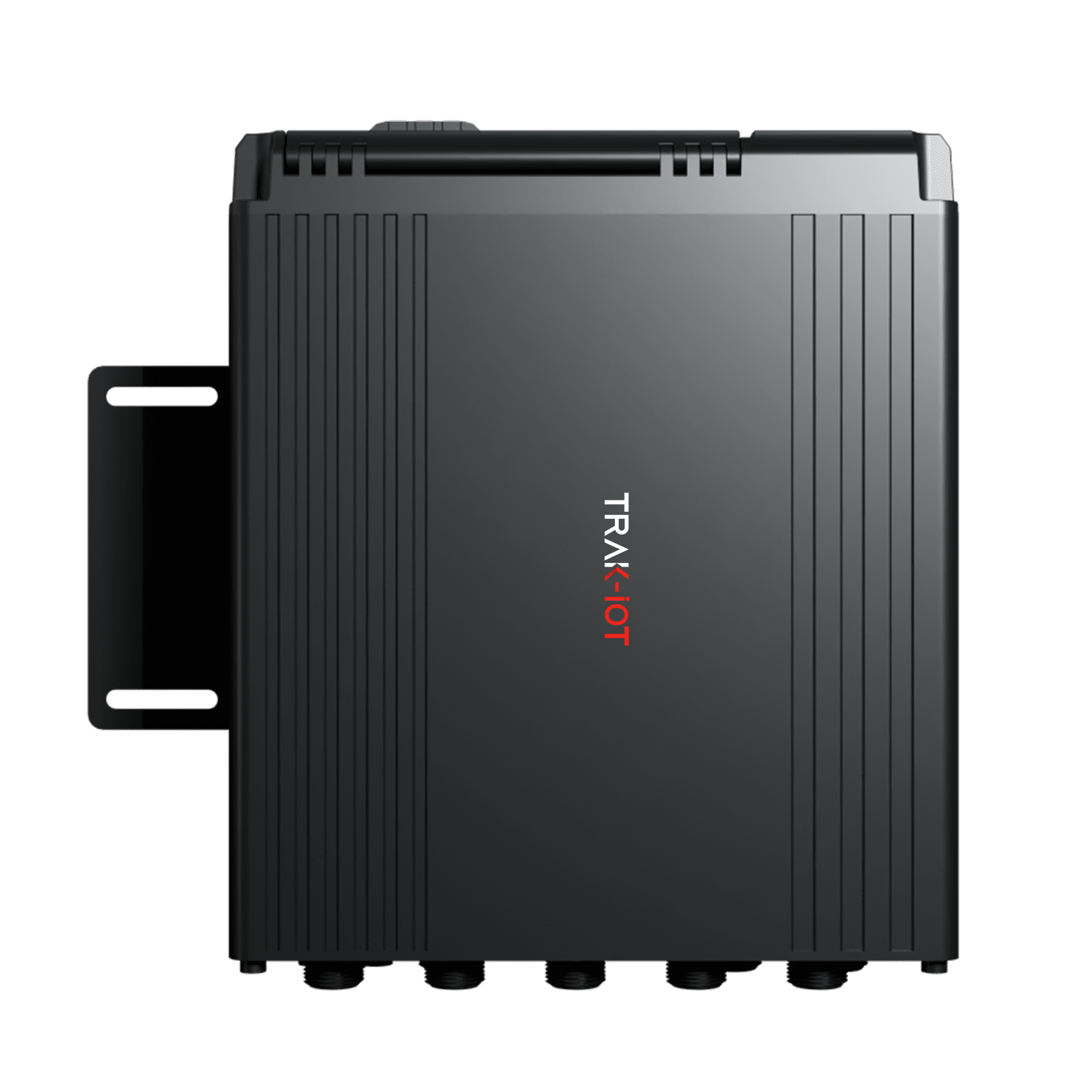

TM03 MDVR FRONT VIEW

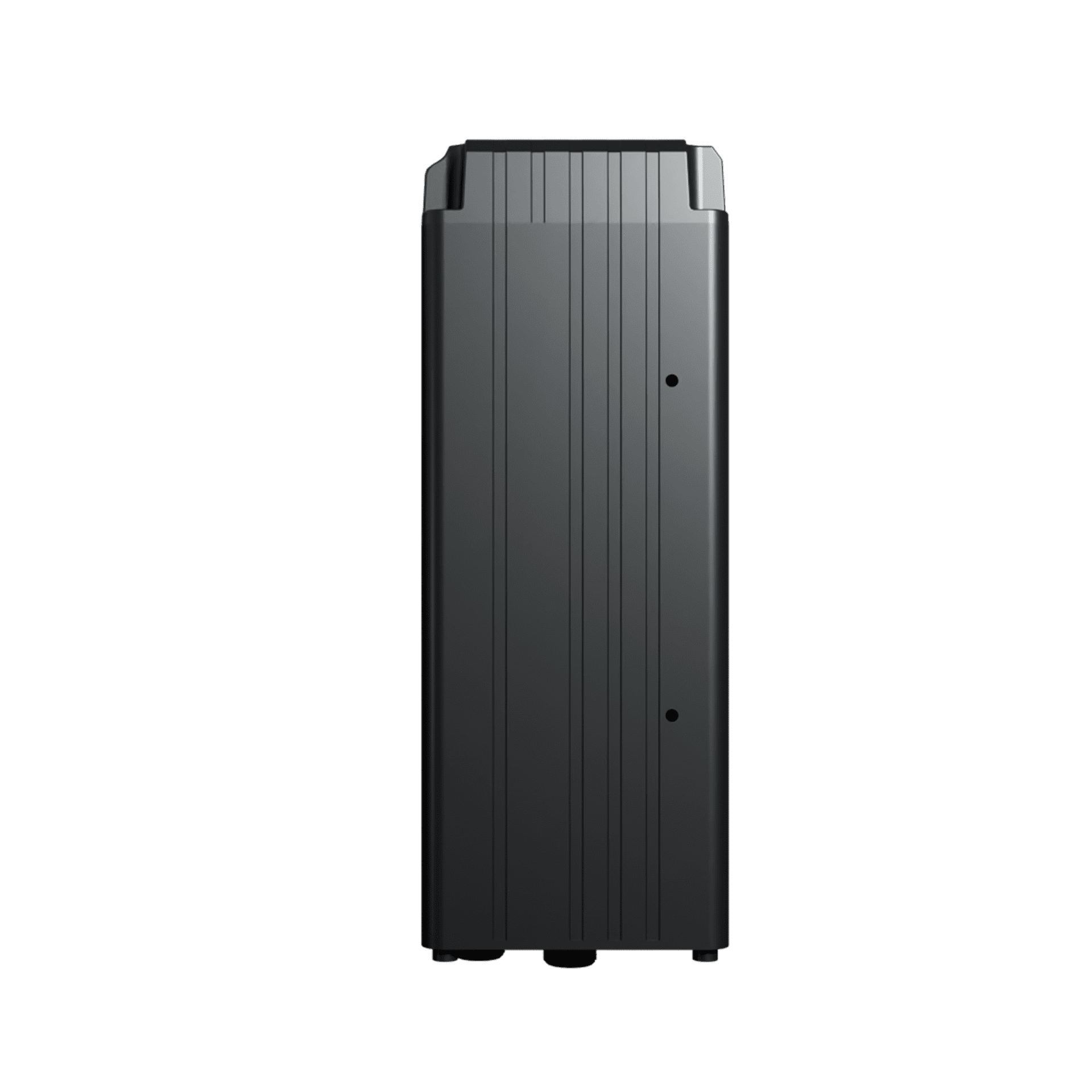

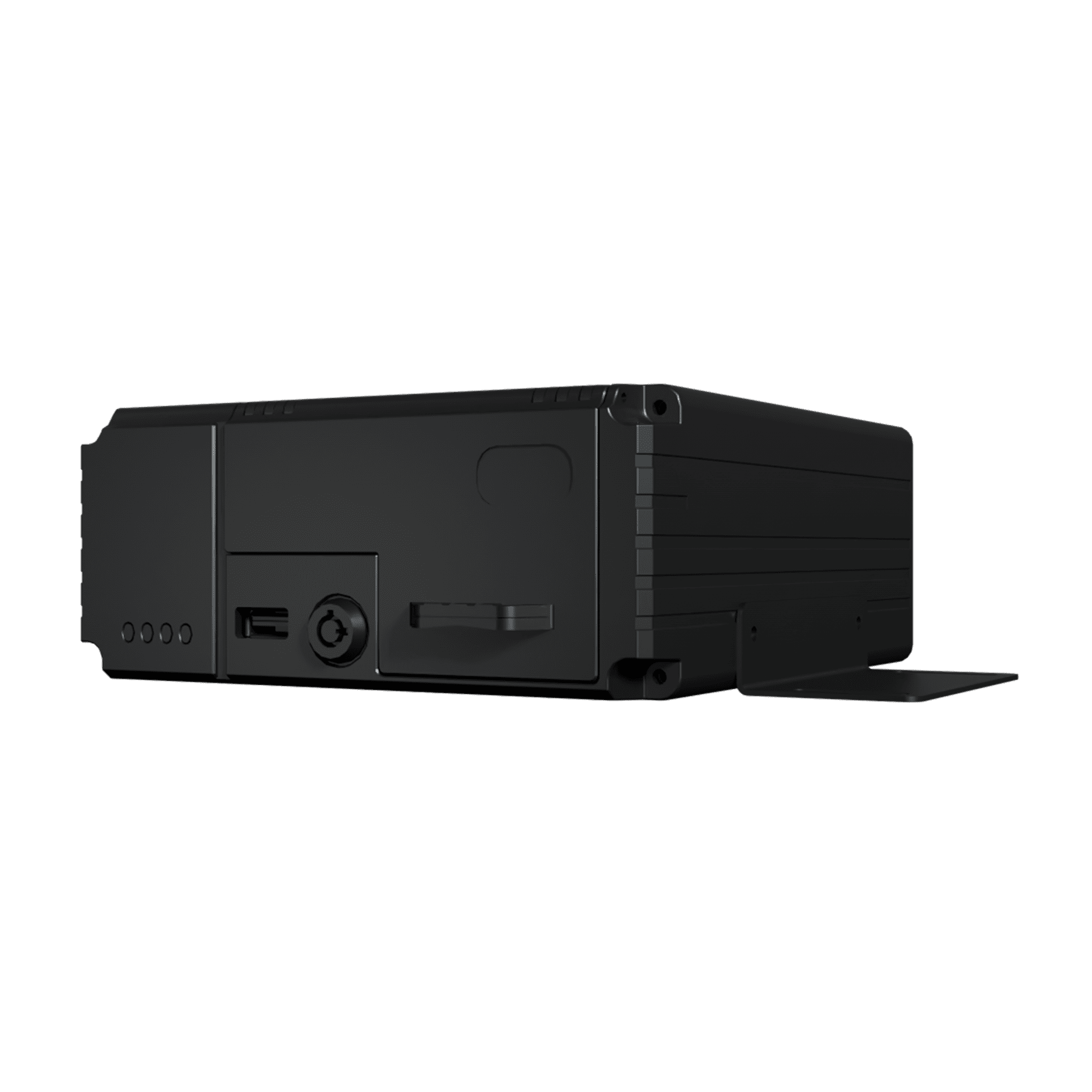

TM03 MDVR SIDE VIEW
TM03 MDVR SIDE VIEW

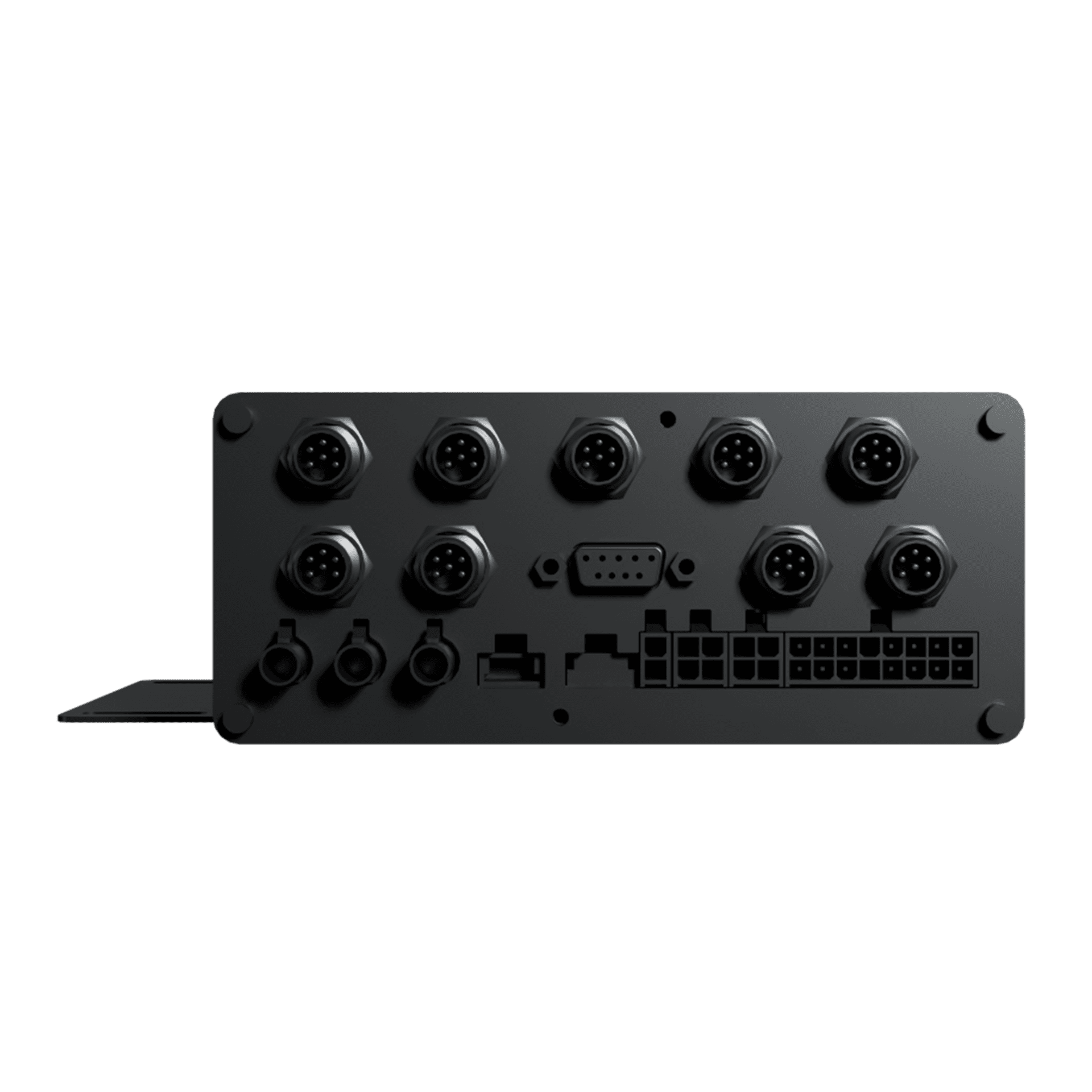

TM03 MDVR BOTTOM VIEW
TM03 MDVR BOTTOM VIEW

TM03 mobile DVR is an onboard video surveillance terminal which integrates 4G communication, GNSS positioning, ADAS advanced drivier assistance system, and DSM driver state monitoring system. It supports 8-channel audio and video recording, SD card and hard disk storage, driving data recording, two-way communication initiated by the monitoring end, real-time monitoring, and other functions. It supports seamless integration with customer monitoring systems. It is widely used in industries such as taxis, ride-hailing cars, small trucks, and construction vehicles.

icon png img

4G LTE Full Network Connectivity

Designed for IoT connectivity in Southeast Asian, Latin American and European Countries

icon png img

Audio and video recording

Supports 8 channel audio and video recording

icon png img

Two-way communication

Supports two-way communication initiated by the monitoring end

icon png img

Storage

Supports SD card and hard disk storage

icon png img

Positioning and monitoring

GNSS positioning and real-time monitoring

icon png img

ADAS and DSM

Supports ADAS advanced drivier assistance system and DSM driver state monitoring

CELLULAR NETWORK

Operating Band

TM03-SEA:
LTE FDD:B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM:900/1800MHZ

TM03-LA:
LTE FDD:B1/2/3/4/5/7/8/28/66
LTE TDD:B40
WCDMA:B1/2/4/5/8
GSM/EDGE:B2/3/5/8

TM03-EU:
LTEFDD:B1/3/5/7/8/20/28
LTE TDD:B38/40/41
WCDMA:B1/5/8
GSM/EDGE:B3/8

MAIN SPECIFICATIONS

Operating System

Linux

Hardware Solution

Microprocessor:4-core A7
Cache: 8GB
Memory: 1GB

Video

AHD720P/1080P: 8-channel 720P (1280*720) or 1080P (1920*1080)
Output: 1-channel VGA

Audio

7-channel audio (PCM format), AV3-AV8, pickup(electro-acoustic transducer)
Output: 2-channel audio (PCM format), speakers and AI alert speakers

Display

On screen display: 8-channel screen display

Video Recording

Video and audio compression formats:
Audio g711A, video H.264
Image resolution:
720P（1280*720）or 1080P（1920*1080）
Real-time recording: 8-channel
ACC-off delayed video recording:
The delay parameter ranges from 10 to 65535s. The default is 300 seconds

Playback

Supports 8-channel synchronous playback for local end, while the monitoring end only supports single-channel playback.

PHYSICAL

Dimensions

170mm*150mm*65mm

Weight

1260g

Operating Voltage

DC 9-36V

Operating Current

600mA@12V,300mA@24V

Standby Power Consumption

60mA@12V,33mA@24V

Backup Battery

Support working for 15S after power failure

Storage

Hard disk: One hard disk with a maximum capacity of 2TB
SD: Single SD card, maximum support 256GB

INTERFACES

Front USB Port

Used for AI (ADAS and DMS) calibration, parameter setting

SIM Card

Used for GNSS data upload and video data transmission. Supports single card.

SD Card

Single SD card, maximum support 256GB

Hard Disk

2.5-inch hard disk with a maximum capacity of 2TB

DSM

Connecting DSM camera

ADAS

Connecting ADAS camera

AV3-AV8

Connecting AHD camera

12V OUT

Power supply for VGA screen

VGA

VGA signal output; Used for connecting external VGA screen (optional).

MIC

Used for connecting pickup for two-way communication and audio monitoring

TTS

Two-way communication, voice broadcast

RS485

Connect peripherals, such as load sensors, cloud platform

RS232

Connect peripherals, such as oil quantity collector and temperature collector

RELIABILITIES

Operating Temperature

-25°C to +80℃

Storage Temperature

-40℃ to +85℃

DSM CAMERA

MS-DSM-6

The MS-DSM-6 camera is an accessory camera for TM03 4G mobile DVR. It is a driver state monitoring camera which provides effective warnings for drivers' dangerous driving behaviors, such as fatigue, smoking, phone calls, distraction and other dangerous driving behaviors, and upload them to the platform for evidence collection.
ADAS CAMERA

MS-ADAS-6

The MS-ADAS-6 camera is an accessory camera for TM03 4G Mobile DVR device. It is an ADAS camera, which stands for Advanced Driver-Assistance System camera. Its main function is to provide warnings for vehicle dangerous behaviors, including FCW (Forward Collision Warning) for short-distance collision warning, LDW (Lane Departure Warning), and pedestrian collision warning.
