TM02

4G MDVR

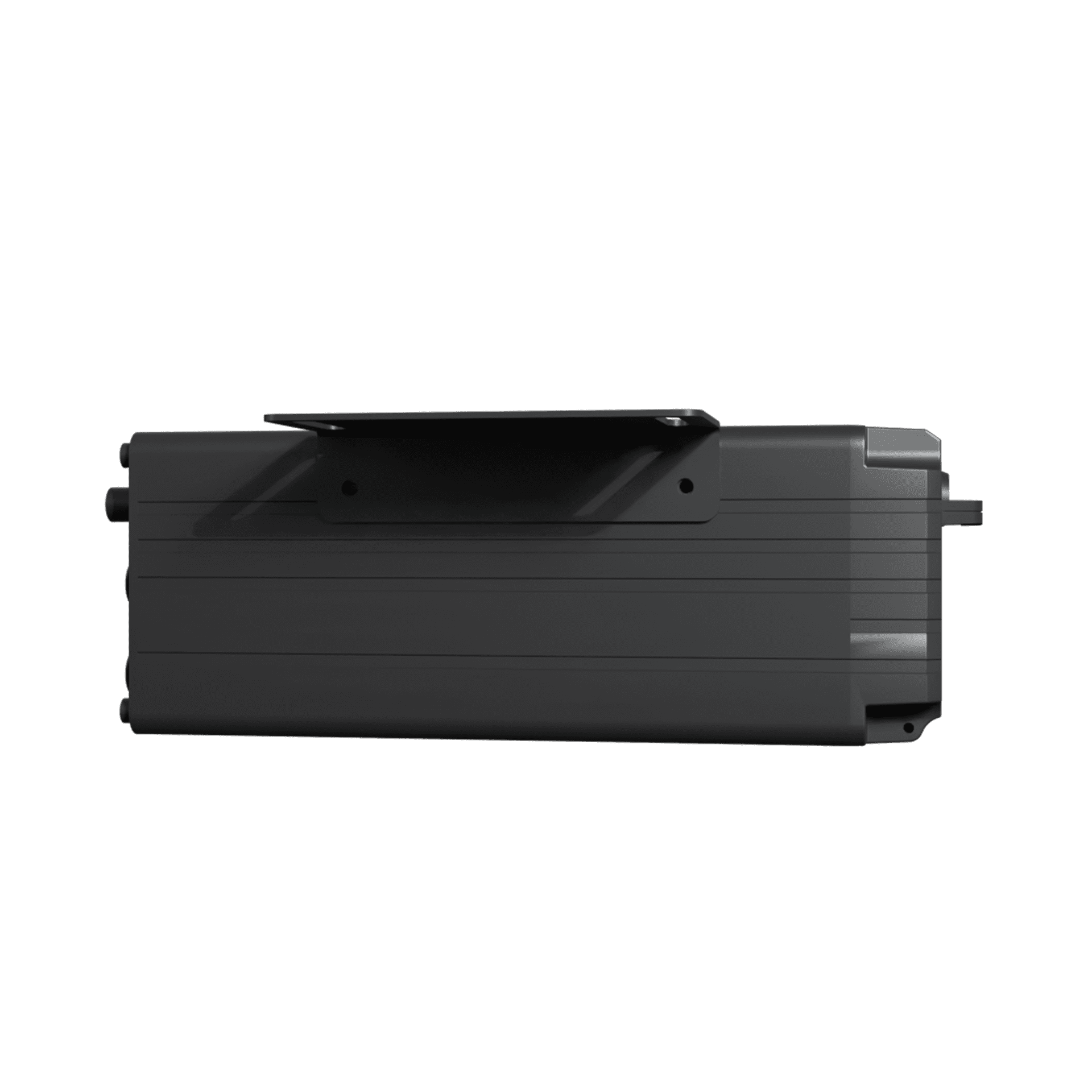

TM02 MDVR front view

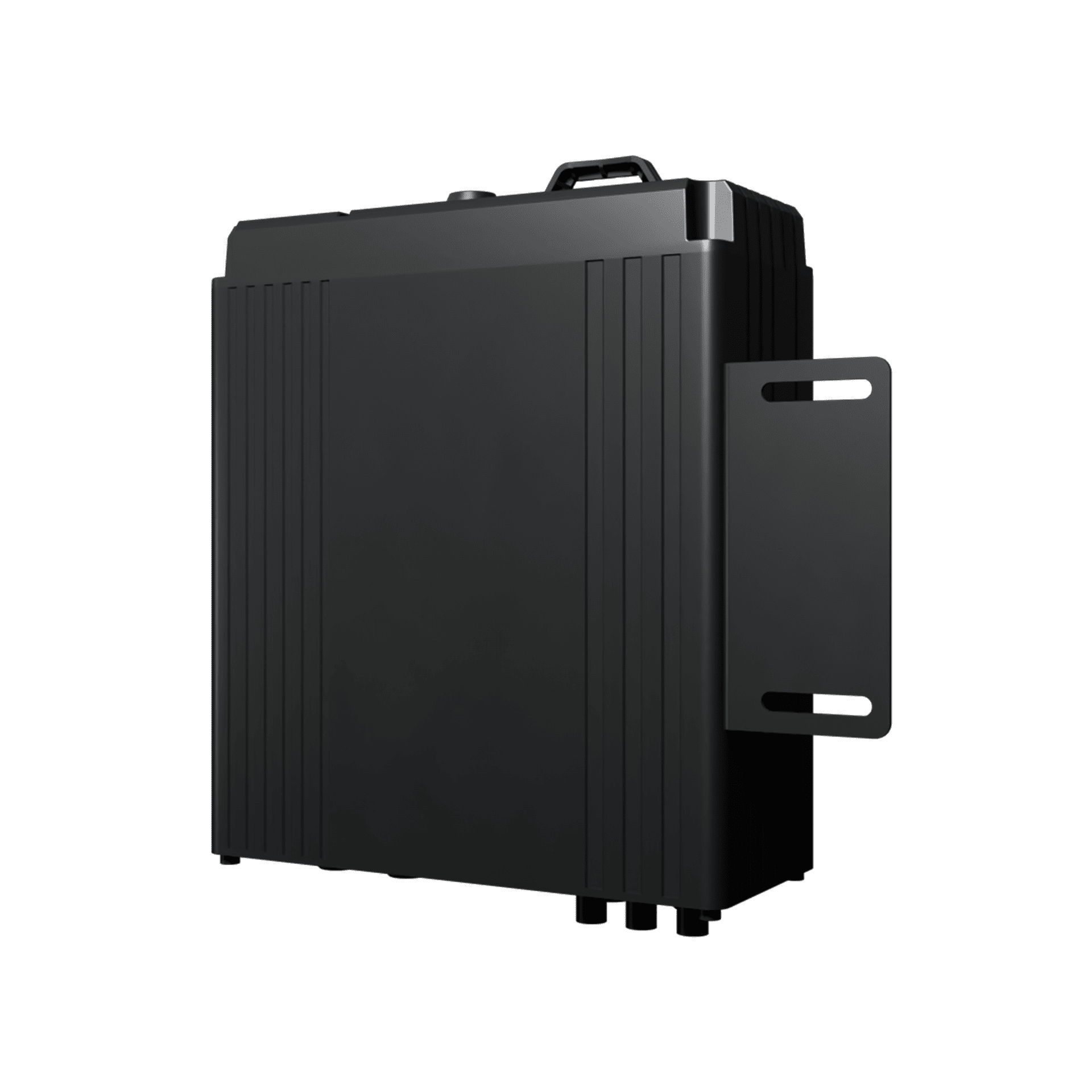

TM02 MDVR

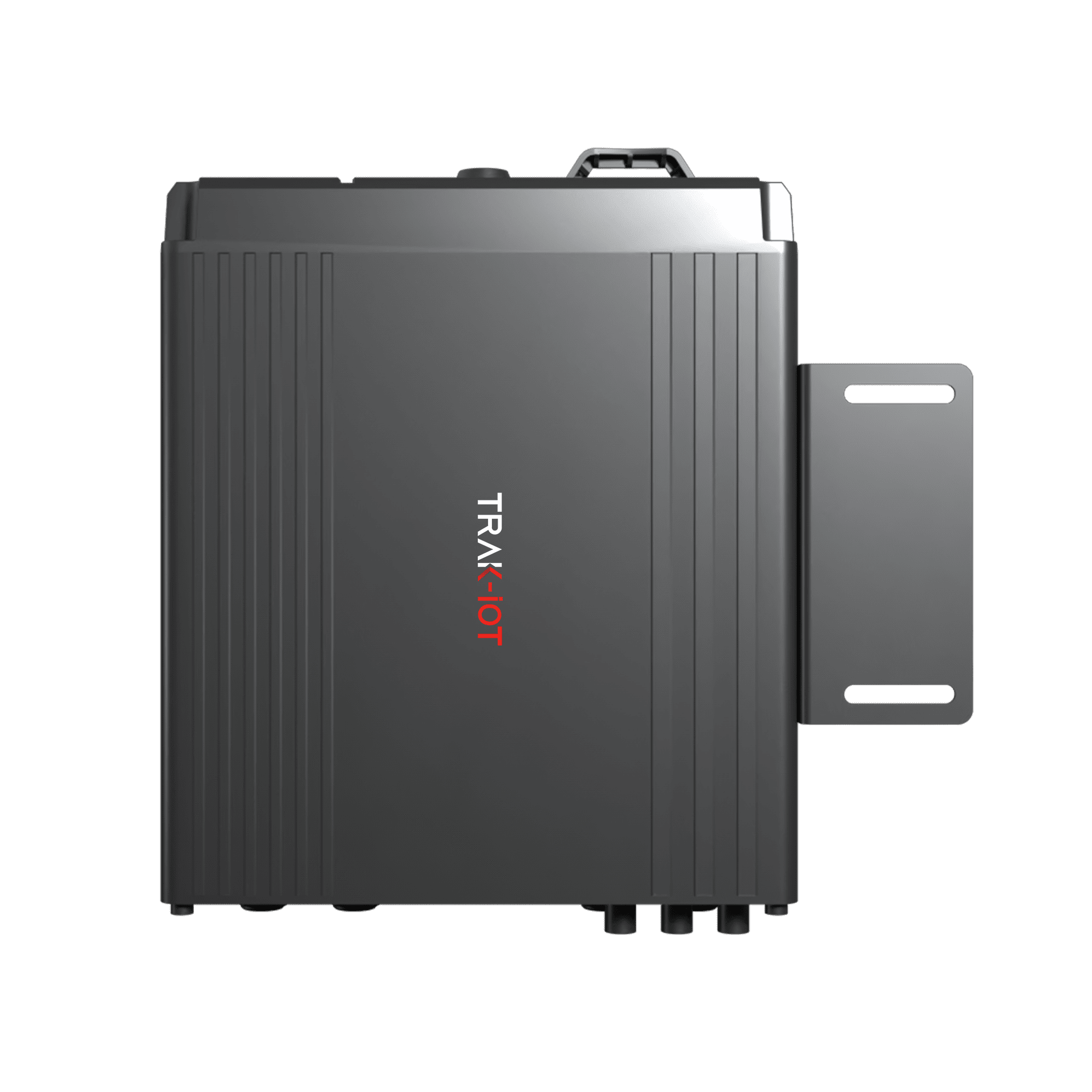

TM02 MDVR
TM02 MDVR

TM02 mobile DVR is a cost-effective and highly expandable vehicle positioning terminal that integrates video surveillance, driving recording, and active safety. It adopts dual SD card recording and supports various resolutions such as 1080P, 720P, D1, HD1, CIF. It utilizes a high-speed processor and embedded operating system, combining advanced H.265 video compression/decompression technology, mobile network technology, positioning technology, to achieve video recording, vehicle driving information recording, wireless data uploading, central remote monitoring, remote management, vehicle data collection and analysis, and driver behavior analysis. It also provides audio and visual reminders for dangerous driving behaviors, enabling real-time monitoring of vehicle and driver status, preventing fatigue driving and speeding, and reducing potential accidents to ensure the safety of vehicle operation.

icon png img

4G LTE Connectivity

Designed for IoT connectivity in European Countries

icon png img

Audio and video

Supports 4 channels of audio and video access and MIC, and supports 1 channel CVBS/VGA output.

icon png img

Video recording

Supports dual stream video and uploading videos to platform.

icon png img

driving mileage

Providing statistics on vehicle driving mileage

icon png img

Real-time Positioning and monitoring

Provides real-time location, speed and other positioning information

icon png img

ADAS and DSM

Supports ADAS advanced drivier assistance system and DSM driver state monitoring

icon png img

Sleep mode

Device enters sleep mode after 4 minutes of ACC-off and restarts every 2 hours.

icon png img

Multiple alarms

Supports multiple alarms such as emergency alarm, overspeed alarm, fatigue driving alarm, power failure alarm, low voltage alarm, etc.

icon png img

Blind spot data storage

Supports storing up to 10,000 pieces of blind spot data

CELLULAR NETWORK

Operating Band

LTE-FDD:B1/B3/B5/B7/B8/B20/B28
LTE-TDD:B38/B40/B41
WCDMA:B1/B5/B8

Transmitting Power

Class 3 (24dBm+1/-3dB) for WCDMA bands
Class 3 (23dBm±2dB) for LTE-FDD bands
Class 3 (23dBm±2dB) for LTE-TDD bands

POSITIONING

Cold Start Time

Cold start time. ≤45s (average), ≤32s (open sky). Exact time may be affected by local weather and environment.

Hot Start Time

≤1s (open sky), exact time may be affected by local weather and environment.

Sensitivity (Tracking)

Above -155dBm

Sensitivity (Acquisition)

Above -142dBm

Positioning Antenna

External

Positioning Antenna Status

Supports antenna open circuit and short circuit detection.

Positioning Performance Test Standards

In the open sky, the number of satellites with a signal-to-noise ratio (SNR) greater than 30 is at least 4, and at least one satellite has an SNR greater than or equal to 40.

PHYSICAL

Dimensions

129mmmm*153.2mm*42mm

Shell Material

Aluminum profile +PC

Power Supply Mode

Car battery power supply

Operating Voltage

9V to 36V; surge protection up to 100V and reverse polarity protection.

Operating Current

100mA to 700mA (during operation, with stable signal, at 24V); 35mA (during sleep mode, at 24V).

Normal Operating Power Consumption

8W(4-channel camera)

Maximum Operating Power Consumption

12W

Minimum Power Consumption

0.5W

WORKING PARAMETERS

Video Processor

Fullhan MC6630

Video Storage

DDR:4Gb FLASH:128MB

Operating System

LINUX 4.9

Video Input

2-channel 1080P (non-real-time)/720P/HD1/D1 camera input + DSM input + ADAS input, supports PAL/NTSC format.

Video Output

One CVBS output/one VGA output

Audio Input

Supports one MIC input

Audio Output

Supports one audio output

Video Recording

Video compression format: H264/H265(Optional)
Audio compression format: G711A
Image resolution: CIF、HD1、D1、720P、960P、1080P
Record mode: Power-on/timing/alarm video
Support ACC delay recording, the delay time can be configured, the default time is 60s
Support alarm video recording

Video Playback

Supports multi-channel playback for the local playback software, while the central platform only supports single-channel playback.

Storage

Supports dual SD card storage, with a maximum capacity of 256GB per card.

Backup Battery

Lithium battery, supports uploading specific data such as location after power failure.

RELIABILITIES

Operating Temperature

-30℃ to 70℃

Storage Temperature

-40℃ to 85℃

Operating Humidity

45%~75%

dsm camera

MS-DSM-4

The MS-DSM-4 camera is an accessory camera for the TM02 4G mobile DVR. It is a driver state monitoring camera which provides effective warnings for drivers' dangerous driving behaviors, such as fatigue, smoking, phone calls, distraction and other dangerous driving behaviors, and upload them to the platform for evidence collection.
ADAS CAMERA

MS-ADAS-4

The MS-ADAS-4 camera is an accessory camera for the TM02 4G Mobile DVR device. It is an ADAS camera, which stands for Advanced Driver-Assistance System camera. Its main function is to provide warnings for vehicle dangerous behaviors, including FCW (Forward Collision Warning) for short-distance collision warning, LDW (Lane Departure Warning), and pedestrian collision warning.
