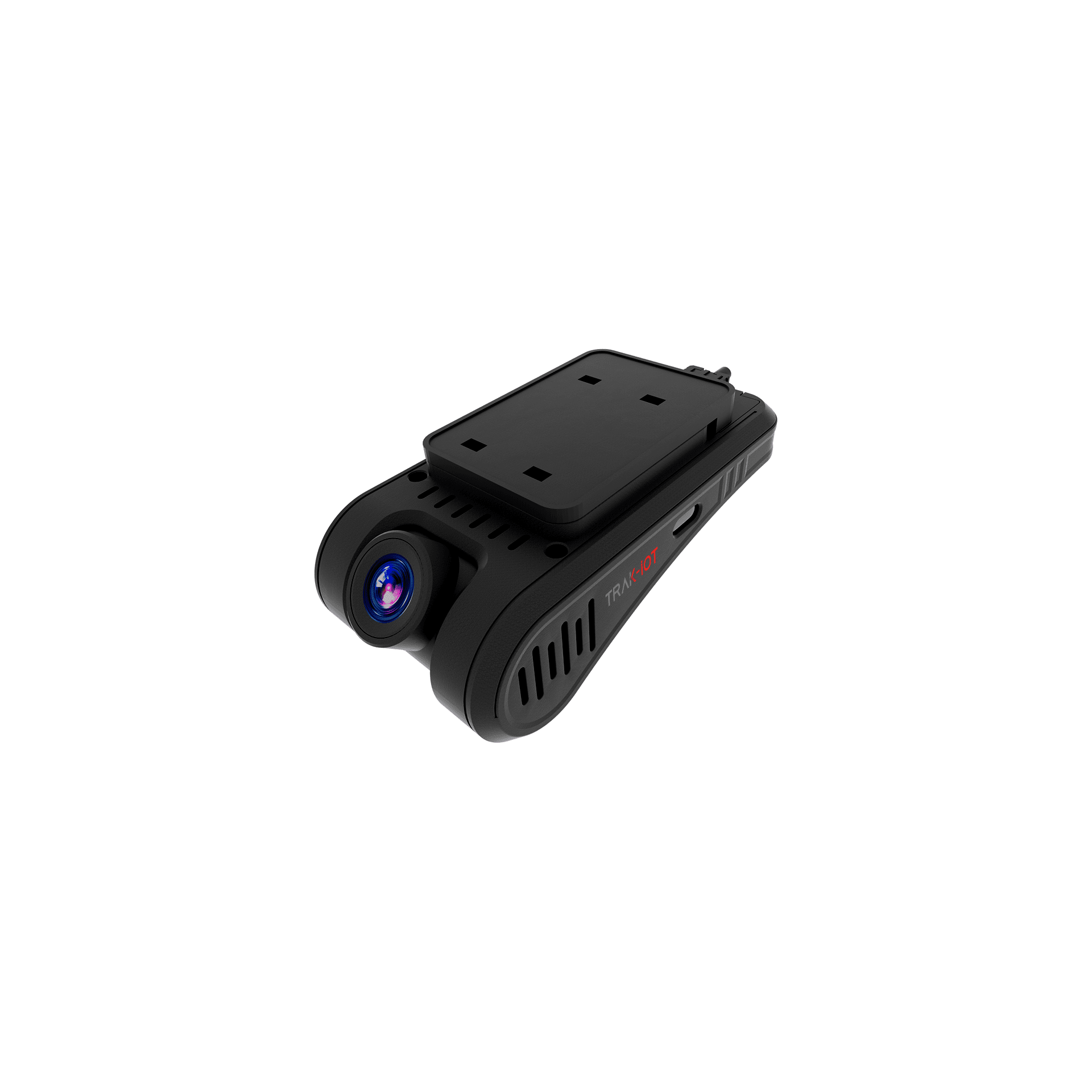

TD04

4G Dash Camera

TD04 is a 4G dash camera independently developed by us. It provides tracking and positioning functions, driving data, as well as various event information and video evidence related to driving. In addition, it makes road rescue, safety protection, and vehicle management more efficient. In the era of 4G+, TD04 is one of the most important product types in the field of connected cars.

icon png img

4G LTE Connectivity

Designed for IoT connectivity in the North American, Southeast Asian, Latin American and European countries.

icon png img

Dual-Satellite Mode Positioning

Supports BeiDou + GPS dual satellite systems for accurate positioning and stable signal.

icon png img

Remote Snapshot

Supports remote snapshot to keep track of the status of the car at any time.

icon png img

Collision Alarm

When the built-in G-sensor detects a collision, it automatically generates an alarm message and sends back a 15s video to help take the initiative to rescue.

icon png img

Emergency Videos

It supports one-click recording of emergency videos, annd retains key evidence to restore the scene of the accident.

icon png img

Vibration Alarm

The device will automatically wake up once vibration is detected and take instant photos, protecting the car 24 hours a day.

icon png img

Loop Recording

Automatically loop recording, no fear of power failure, abnormal ejection of TF card and other emergencies, the video file will not be damaged.

icon png img

Parking monitoring

Enters low power mode after the engine is turned off, and can be remotely awakened at any time to activate the dash cam.

icon png img

Mobile Interconnection

Using 4G communication to connect with the mobile phone, you can watch the real-time live broadcast, and the video playback of the dash cam.

APPLICATION SCENARIOS

CASE STUDY

CELLULAR NETWORK

Operating Band

TD04-NA:
LTE FDD: B1/3/5/8
LTE TDD:B34/38/39/40/41

TD04-SEA:
LTE FDD:B1/B3/B5/B8
LTE TDD:B34/B38/B39/B40/B41
GSM:900/1800MHZ

TD04-LA:
LTE FDD:B1/2/3/4/5/7/8/28
LTE TDD:B40

TD04-EU:
LTE FDD:B1/3/5/7/8/20/28
LTE TDD:B38/40/41

Communication RF Chip

OC9743-63

Device Memory

1MB

Phase Error

<17.5°

Maximum Output

23 ± 2 dBm

Maximum Frequency Error

±0.1 PPM

MAIN SPECIFICATIONS

CPU

SSC333E ARM Cortex-A7 Single Core

Main Frequency

1.0GHz

Memory

64MB

Flash

16MB

POSITIONING

Positioning Systems

GPS/BeiDou

Frequency

GPS 1575.42MHZ
BD 1561.098MHZ

GPS Chipset

UC6228

Sensitivity

-160dBm (Tracking)
-140dBm (Acquisition)

Location Accuracy

5m

TTFF

60S (Cold start)
10S (Hot start)

WORKING PARAMETERS

Device Protocol

JT/T808-2013、JT/T1078—2016

Operating Voltage

USB input DC5V / Original car power 9-36V

Operating Current

12V/150mA (static 12V/3mA)

Battery

No

Continuous Working Endurance Time

5 minutes after ACC is closed

Continuous Idle Endurance Time

5 minutes after ACC is closed

Blind Zone Track Point Storage Capacity

300

Waterproof and Dustproof Grade

IP66

Resolution

1920*1080(1080P)

Video Storage Bit Rate

7Mbps

Video Upload Bit Rate

512kbps~2Mbps adaptive

Storage Medium

Class 10 or above high-speed TF card*1

PHYSICAL

Dimensions

52.7mmx98mmx49mm

Weight

91g

RELIABILITIES

Operating Temperature

-30°C ~60°C

Operating Humidity

10 - 95%

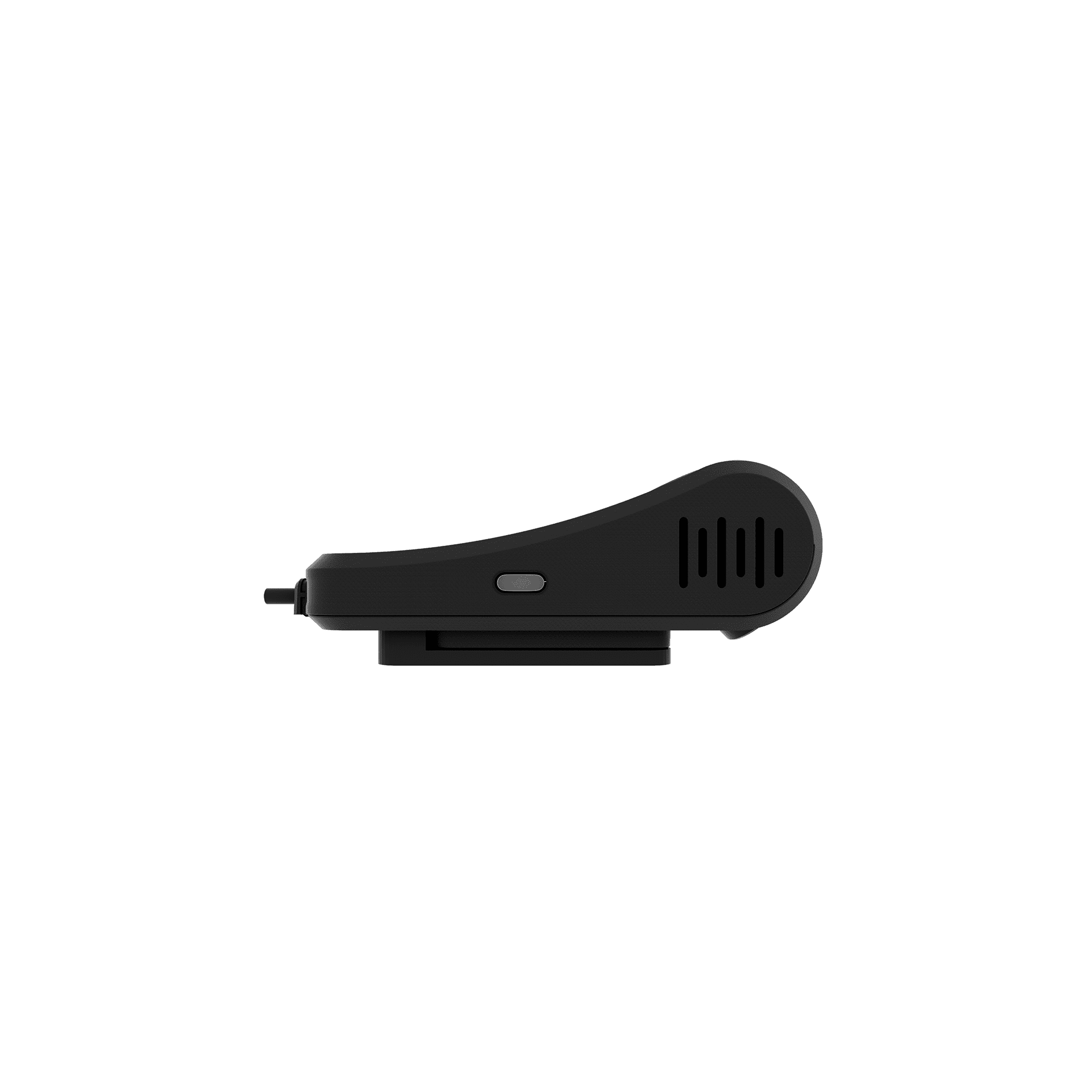

TD04 SIDE VIEW
