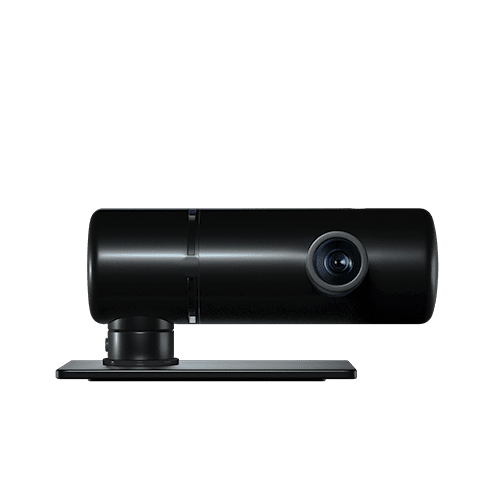

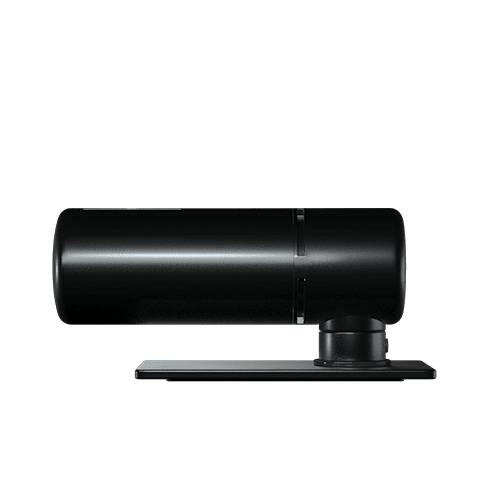

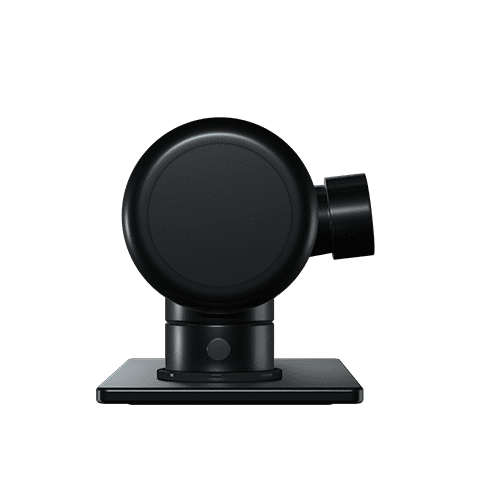

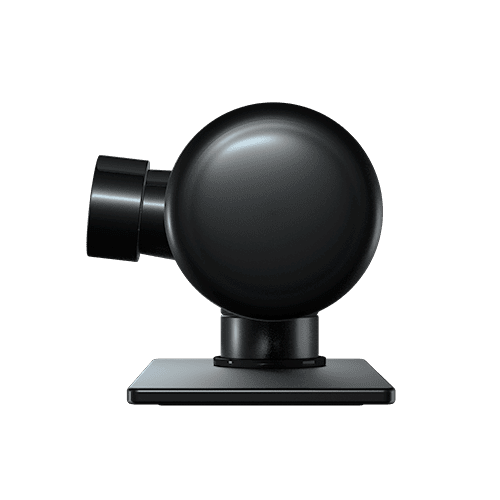

TD02-DL

Cabin View Add-On Camera

TD02-DL cabin view add-on camera is speacially designed for TD02 4G AI dash camera as the interior camera to record in the car.

icon png img

Record in the vehicle

It is served as an interior camera to record the whole cabin scenario in the vehicle.

PHYSICAL

Sensor

1/2.9 2Mps CMOS GC2053

Pixel Size

2.8μm*2.8μm

ISP

FH8536H

Image Mode

Automatic color to black

Resolution Ratio

1280*720

Output Signal

AHD

Frame Rate

25FPS

Elements of Lens

4G+1IR(940nm dual-pass)

Focal Length

2.8mm

Aperture

2.0

Lens Thread Size

M12*P0.5

Field of View

D=145° H=126° V=63°

IR Filter

650nm&940nm dual-pass

Interface

5PIN/ BMW connector

RELIABILITIES

Consumption(Max)

DC5V 180mA

Working Environment

Humidity 20%-95%, temperature -25℃~80℃

Storage Temperature

-40℃~85℃

TD02 Dashcam Front View

4G AI Dash-TD02

TD02 is a dedicated dashcam device for online-hailing vehicles, which has integrated the features of positioning, 4G communication, video storage, and transmission. It supports recording one channel of 1080P video and three channels of 720P video. Equipped with active safety algorithms, it enables remote real-time video preview and playback of historical videos. It can also be connected to peripherals such as fare meters, rating devices, and advertising screens. TD02 is suitable for regulated industries such as online-hailing services and can also be used for enterprise supervision.
