Advanced Driver Assistance System
During driving, it provides warnings for vehicle dangerous behaviors, including FCW (Forward Collision Warning) for short-distance collision warning, LDW (Lane Departure Warning), and pedestrian collision warning.

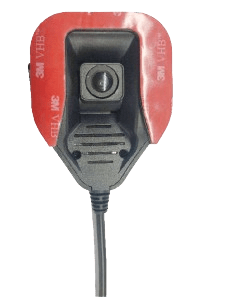

MS-ADAS-6
ADAS Camera for TM03 MDVR
The MS-ADAS-6 camera is an accessory camera for TM03 4G Mobile DVR device. It is an ADAS camera, which stands for Advanced Driver-Assistance System camera. Its main function is to provide warnings for vehicle dangerous behaviors, including FCW (Forward Collision Warning) for short-distance collision warning, LDW (Lane Departure Warning), and pedestrian collision warning.
PERFORMANCE PARAMETERS
Senso
1/3 1.3M COMS
Solution
H65+TP3803
Horizontal Resolution
720P
Signal System
AHD
Resolution
1280*720
Synchronization System
Internal synchronization
Lens
3.6 mm F2.24G
Original/Mirror image
Original/optional
Field of View
D=79°，H=67°，V=53°
White Balance
Auto
Video Output
AHD coaxial standard 6PIN airline
Audio Output
Built-in speaker
Effective Frequency
20HZ-20KHZ
Connector
6PIN, Aviation
1. SPK_N，2. SPK_P，3. GND, 5. Video, 6. DC 5V
Power Consumption (Max)
DC5V 81mA
Power Supply
DC5V
RELIABILITIES
Operating Environment
Humidity 20% -95% , temperature-25 ° C-80 ° C
Storage Temperature
-40℃~85℃
TM03
TM03 mobile DVR is an onboard video surveillance terminal which integrates 4G communication, GNSS positioning, ADAS advanced drivier assistance system, and DSM driver state monitoring system. It supports 8-channel audio and video recording, SD card and hard disk storage, driving data recording, two-way communication initiated by the monitoring end, real-time monitoring, and other functions. It supports seamless integration with customer monitoring systems. It is widely used in industries such as taxis, ride-hailing cars, small trucks, and construction vehicles.
