Advanced Driver Assistance System
During driving, it provides warnings for vehicle dangerous behaviors, including FCW (Forward Collision Warning) for short-distance collision warning, LDW (Lane Departure Warning), and pedestrian collision warning.

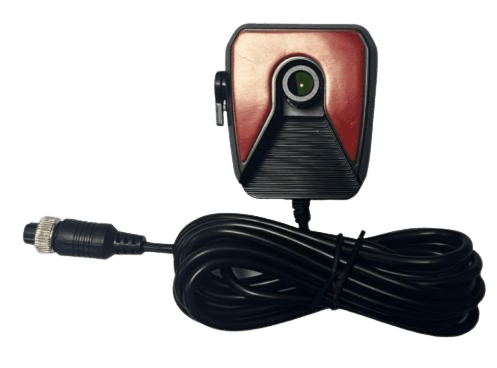

MS-ADAS-4
Advanced Driver-Assistance System Camera
The MS-ADAS-4 camera is an accessory camera for the TM02 4G Mobile DVR device. It is an ADAS camera, which stands for Advanced Driver-Assistance System camera. Its main function is to provide warnings for vehicle dangerous behaviors, including FCW (Forward Collision Warning) for short-distance collision warning, LDW (Lane Departure Warning), and pedestrian collision warning.
PERFORMANCE PARAMETERS
Sensor Type
COMS SC1336 1/3 inch
Effective Pixels
1280H * 720V
Pixel Size of the Valid Image Area
3.75um x 3.75um
White Balance
Auto
Video Output
AHD(1.0Vp-p,75Ω)
Format
PAL/NTSC optional (default PAL)
Image Mode
Full color
Original/Mirror image
Original/optional
Reversing Ruler
No
Aperture
F/NO=2.0
Focal Length
F=6mm
Perspective
H=50 ° V=28 °
Lens Structure
4G
Motherboard Current
45mA±10mA
Power Consumption
0.54W
Power Supply
DC12V
Aviation Line Length
3m
RELIABILITIES
Operating Temperature
-20 °C/+70 °C，RH75%MAX
Storage Temperature
-20 °C/+70 °C，RH95%MAX
TM02
TM02 mobile DVR is a cost-effective and highly expandable vehicle positioning terminal that integrates video surveillance, driving recording, and active safety. It adopts dual SD card recording and supports various resolutions such as 1080P, 720P, D1, HD1, CIF. It utilizes a high-speed processor and embedded operating system, combining advanced H.265 video compression/decompression technology, mobile network technology, positioning technology, to achieve video recording, vehicle driving information recording, wireless data uploading, central remote monitoring, remote management, vehicle data collection and analysis, and driver behavior analysis. It also provides audio and visual reminders for dangerous driving behaviors, enabling real-time monitoring of vehicle and driver status, preventing fatigue driving and speeding, and reducing potential accidents to ensure the safety of vehicle operation.
