DS-DSM

Driver State Monitoring Camera

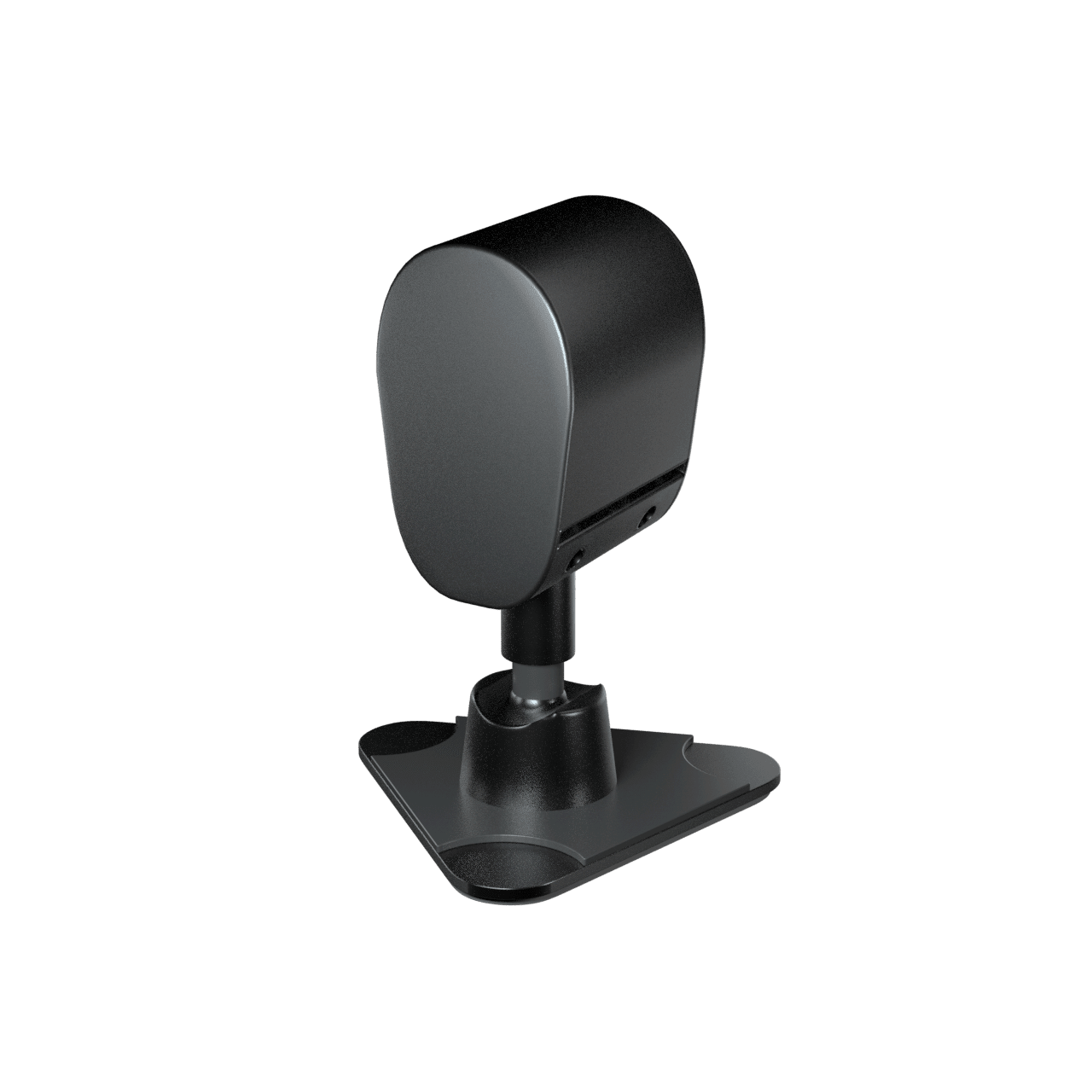

DSM CAMERA

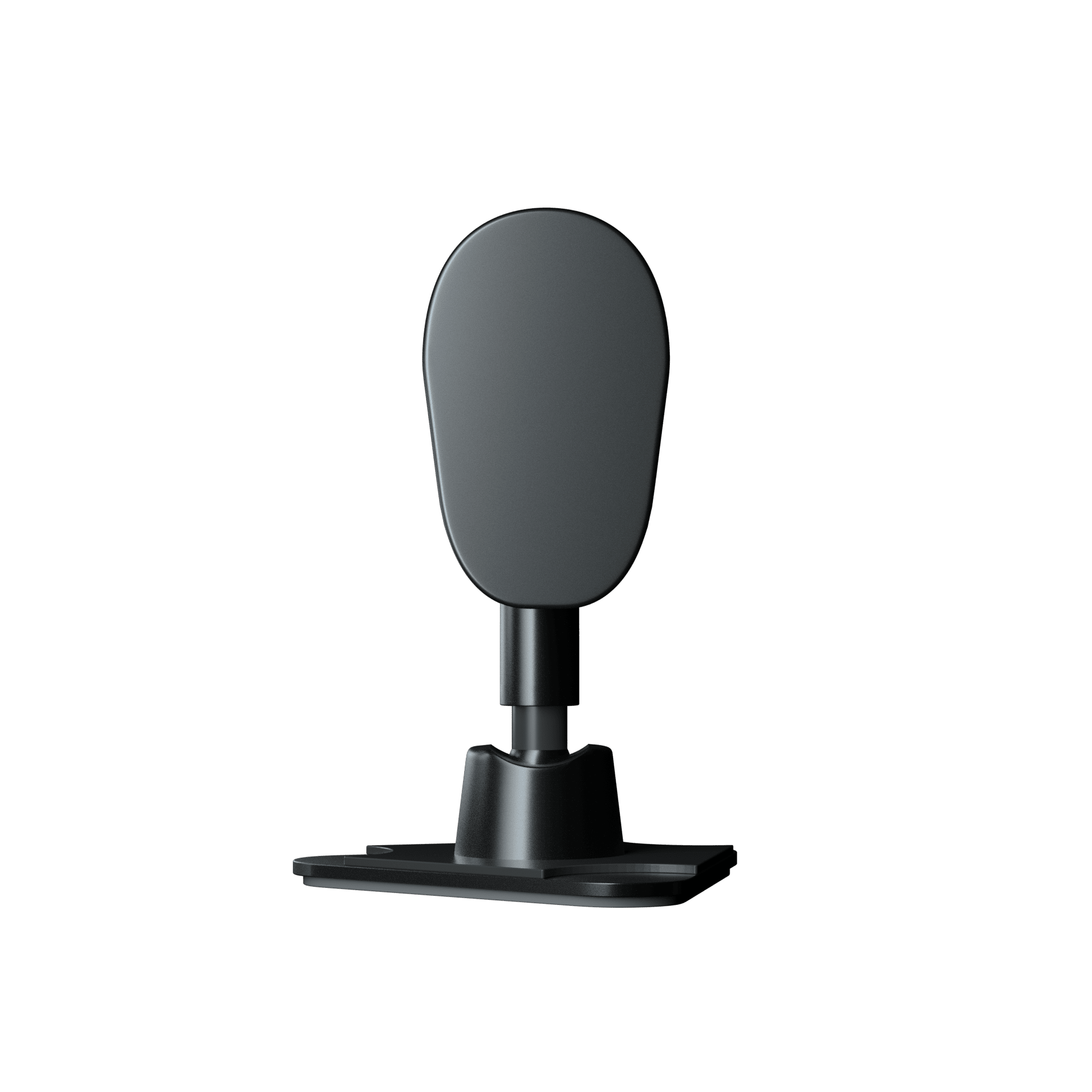

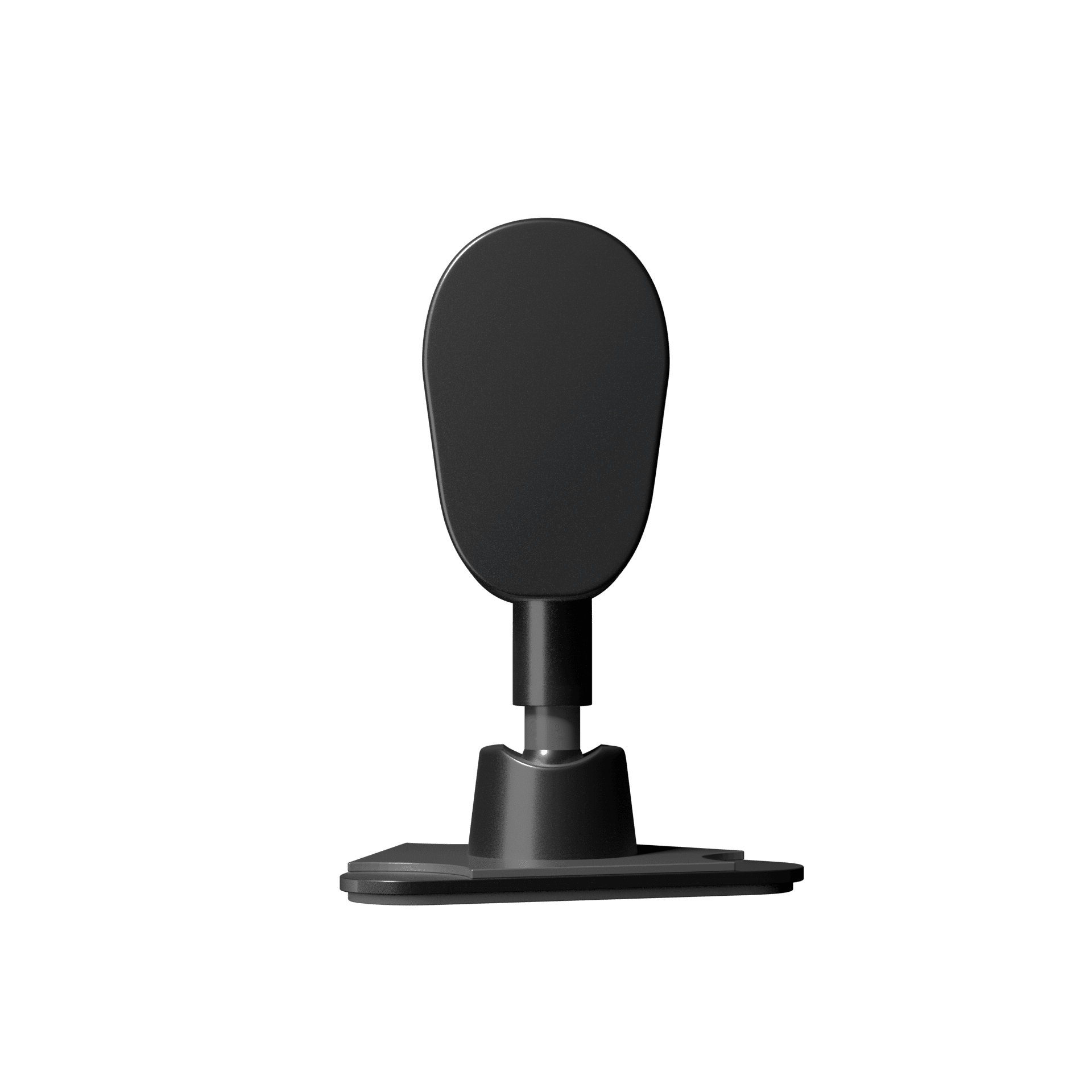

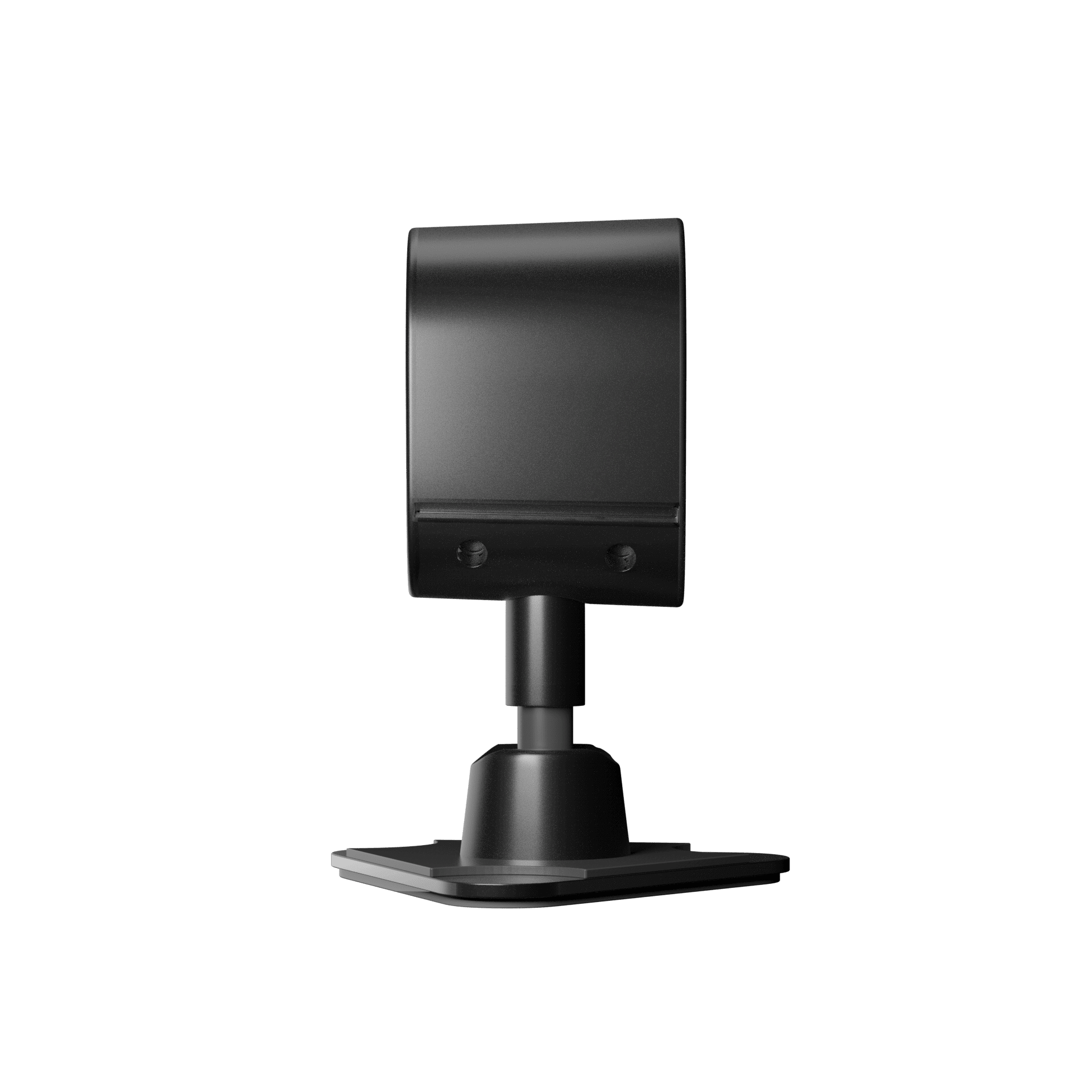

The DS-DSM camera is an accessory camera for the TD02 4G dash camera. It is a Driver State Monitoring camera which provides effective warning for drivers’ dangerous driving behaviors, such as fatigue, smoking, phone calls, distraction and other dangerous driving behaviors, and upload them to the platform for evidence collection.

icon png img

Driver State Monitoring

During driving, it monitors the driver's unsafe driving behaviors in real time，such as fatigue, smoking, phone calls, distraction, etc. It could remind the driver in time and and upload them to the platform for evidence collection.

PHYSICAL

Sensor

1/3 1.3Mps CMOS JXH66

Pixel Size

3.75um*3.75um

ISP

FH8536H

Imaging Target Surface

1/3 ”

Image Mode

Black and white

Resolution Ratio

1280*720

Output Signal

AHD

Frame Rate

25FPS

Elements of Lens

4G+1IR(940nm)

Focal Length

6.0mm

Aperture

2.0

Lens Thread Size

M12*P0.5

Field of View

D=60 ° H=45 °V=26 °

IR Filter

IR 940nm

Interface

5PIN/ BMW connector

RELIABILITIES

Consumption(Max)

DC5V 140mA

Working Environment

Humidity 20%-95%, temperature -25℃~80℃

Storage Temperature

-40℃~85℃

TD02 Dashcam Front View

TD02

TD02 is a dedicated dashcam device for online-hailing vehicles, which has integrated the features of positioning, 4G communication, video storage, and transmission. It supports recording one channel of 1080P video and three channels of 720P video. Equipped with active safety algorithms, it enables remote real-time video preview and playback of historical videos. It can also be connected to peripherals such as fare meters, rating devices, and advertising screens. TD02 is suitable for regulated industries such as online-hailing services and can also be used for enterprise supervision.
